TE Connectivity AMP Connectors 1513472-7

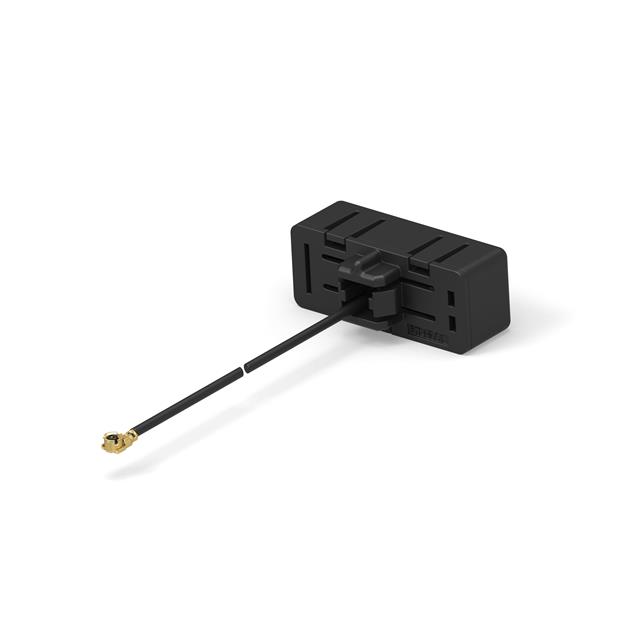

Image shown is a representation only
Manufacturer
Manufacturer No
1513472-7
Packaging
Box
Description
ANTENNA, BLUETOOTH / WI-FI / WLA
Detailed Description
RF ANTENNA 802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™ Module U.FL (UMCC), I-PEX MHF1 Panel Mount
DataSheet
Gain
3dBi
VSWR
3
Features
Cable - 590mm
Packaging
Box
Part Status
Active
Power - Max
10 W
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Module
Applications
802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™
Height (Max)
0.394" (10.00mm)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Panel Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz
Number of Bands
2
RF Family/Standard
802.15.4, Bluetooth, WiFi
Base Product Number
1513472
Frequency (Center/Band)
2.44175GHz, 5.5125GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi |
| VSWR | 3 |
| Features | Cable - 590mm |
| Packaging | Box |
| Part Status | Active |
| Power - Max | 10 W |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Module |
| Applications | 802.11a/b/g/n, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
| Height (Max) | 0.394" (10.00mm) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Panel Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz |
| Number of Bands | 2 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Base Product Number | 1513472 |
| Frequency (Center/Band) | 2.44175GHz, 5.5125GHz |
