Step1: Product

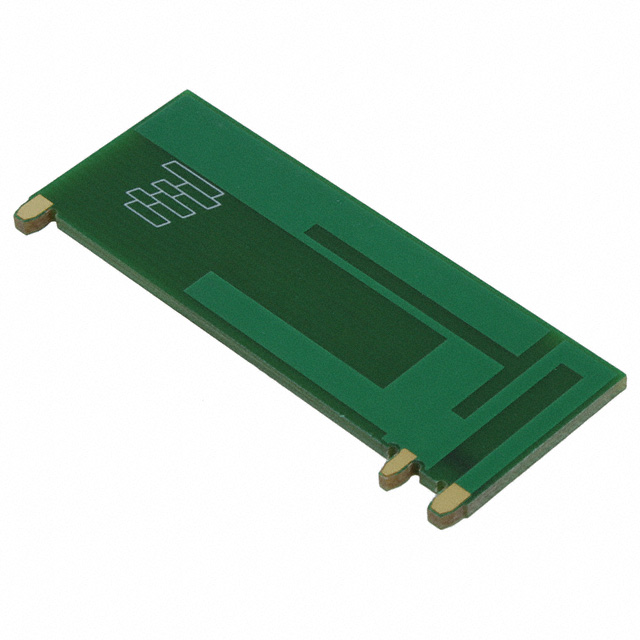

TE Connectivity AMP Connectors 1513317-1
Image shown is a representation only
Manufacturer
Manufacturer No
1513317-1
Quantity
2
Availability
In Stock
Packaging
Bulk
Description
RF ANT 850MHZ/900MHZ PCB TRACE
Detailed Description
RF ANTENNA CDMA, GSM, LTE, UMTS, ZigBee™ PCB Trace Solder Through Hole
DataSheet
Gain
3dBi
VSWR
3
Packaging
Bulk
Part Status
Active
Power - Max
10 W
Termination
Solder
Antenna Type
PCB Trace
Applications
CDMA, GSM, LTE, UMTS, ZigBee™
Height (Max)
0.798" (20.27mm)
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole
Frequency Group
Wide Band
Frequency Range
824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Number of Bands
5
RF Family/Standard
802.15.4, Cellular
Base Product Number
1513317
Frequency (Center/Band)
850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi |
| VSWR | 3 |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 10 W |
| Termination | Solder |
| Antenna Type | PCB Trace |
| Applications | CDMA, GSM, LTE, UMTS, ZigBee™ |
| Height (Max) | 0.798" (20.27mm) |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Frequency Group | Wide Band |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Number of Bands | 5 |
| RF Family/Standard | 802.15.4, Cellular |
| Base Product Number | 1513317 |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz |
