Step1: Product
TE Connectivity AMP Connectors 1473567-3

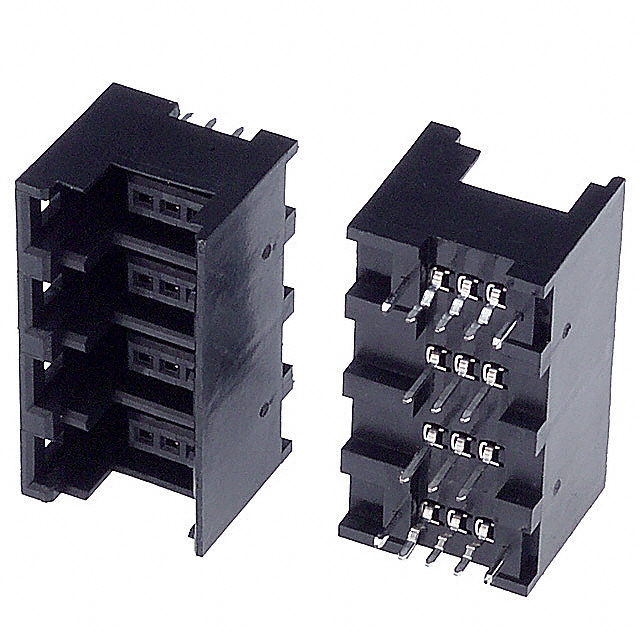

Image shown is a representation only
Manufacturer
Manufacturer No
1473567-3
Packaging
Bulk
Description
CONN HDR 12POS 0.079 GOLD PCB
Detailed Description
12 Position Header Connector 0.079" (2.00mm) Through Hole Gold
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
RITS
Packaging
Bulk
Termination
Press-Fit, Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
4
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
32VDC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.512" (13.00mm)
Base Product Number
1473567
Insulation Material
Thermoplastic, Glass Filled
Number of Positions
12
Row Spacing - Mating
0.256" (6.50mm)
Contact Finish - Post
Tin
Contact Length - Post
0.130" (3.30mm)
Operating Temperature
-30°C ~ 75°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | RITS |
| Packaging | Bulk |
| Termination | Press-Fit, Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 4 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 32VDC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.512" (13.00mm) |
| Base Product Number | 1473567 |
| Insulation Material | Thermoplastic, Glass Filled |
| Number of Positions | 12 |
| Row Spacing - Mating | 0.256" (6.50mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.130" (3.30mm) |
| Operating Temperature | -30°C ~ 75°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
