Step1: Product
TE Connectivity AMP Connectors 147106-5

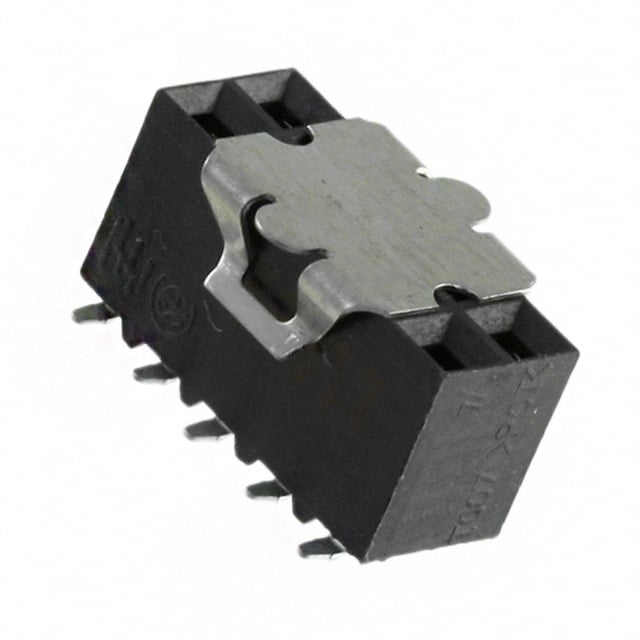

Image shown is a representation only
Manufacturer
Manufacturer No
147106-5
Packaging
Tape & Reel (TR)
Description
CONN RCPT 10POS 0.1 TIN-LEAD SMD
Detailed Description
10 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Tin-Lead
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
AMPMODU Mod IV
Features
Pick and Place
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle, Bottom or Top Entry
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.265" (6.73mm)
Base Product Number
147106
Insulation Material
Polyester, Glass Filled
Number of Positions
10
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin-Lead
Current Rating (Amps)
2A
Operating Temperature
-65°C ~ 125°C
Contact Finish - Mating
Tin-Lead
Number of Positions Loaded
All
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
150.0µin (3.81µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | AMPMODU Mod IV |
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Bottom or Top Entry |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.265" (6.73mm) |
| Base Product Number | 147106 |
| Insulation Material | Polyester, Glass Filled |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin-Lead |
| Current Rating (Amps) | 2A |
| Operating Temperature | -65°C ~ 125°C |
| Contact Finish - Mating | Tin-Lead |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
