Step1: Product

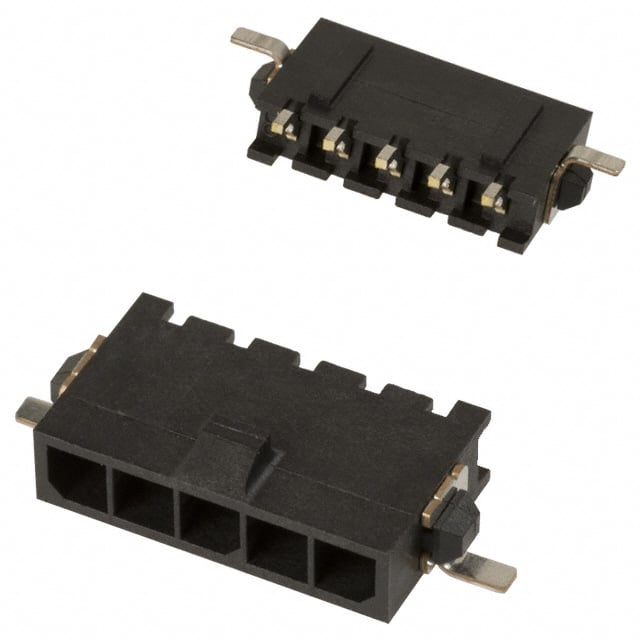

TE Connectivity AMP Connectors 1445100-5
Image shown is a representation only
Manufacturer
Manufacturer No
1445100-5
Packaging
Tape & Reel (TR)
Description
CONN HEADER SMD R/A 5POS 3MM
Detailed Description
Connector Header Surface Mount, Right Angle 5 position 0.118" (3.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Micro MATE-N-LOK
Features
Solder Retention
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Part Status
Obsolete
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.118" (3.00mm)
Voltage Rating
250V
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.152" (3.85mm)
Base Product Number
1445100
Insulation Material
Polyamide (PA), Nylon
Number of Positions
5
Contact Finish - Post
Tin-Lead
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Micro MATE-N-LOK |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Obsolete |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.118" (3.00mm) |
| Voltage Rating | 250V |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.152" (3.85mm) |
| Base Product Number | 1445100 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 5 |
| Contact Finish - Post | Tin-Lead |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
