Step1: Product

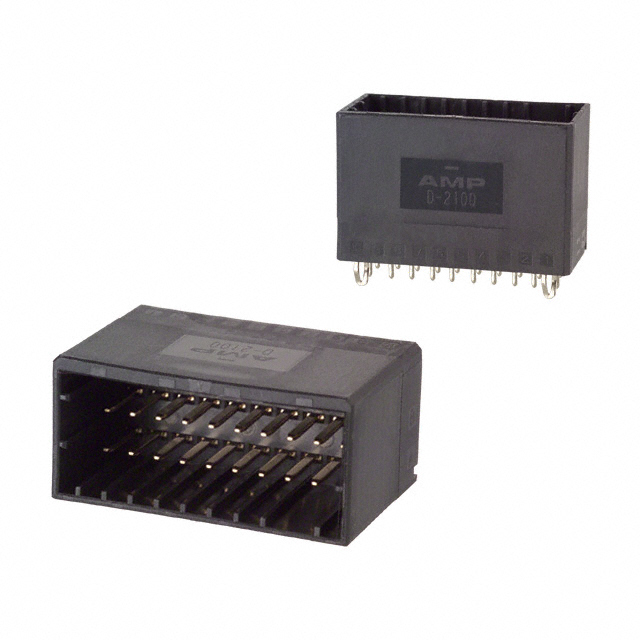

TE Connectivity AMP Connectors 1318127-2
Image shown is a representation only
Manufacturer
Manufacturer No
1318127-2
Quantity
607
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 20POS 2.5MM
Detailed Description
Connector Header Through Hole 20 position 0.098" (2.50mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
Dynamic D-2100
Features
Board Lock
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose, Industrial
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
2
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.700" (17.78mm)
Base Product Number
1318127
Insulation Material
Thermoplastic, Polyester, Glass Filled
Number of Positions
20
Row Spacing - Mating
0.148" (3.75mm)
Contact Finish - Post
Tin
Contact Length - Post
0.134" (3.40mm)
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | Dynamic D-2100 |
| Features | Board Lock |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.700" (17.78mm) |
| Base Product Number | 1318127 |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Number of Positions | 20 |
| Row Spacing - Mating | 0.148" (3.75mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134" (3.40mm) |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
