Step1: Product

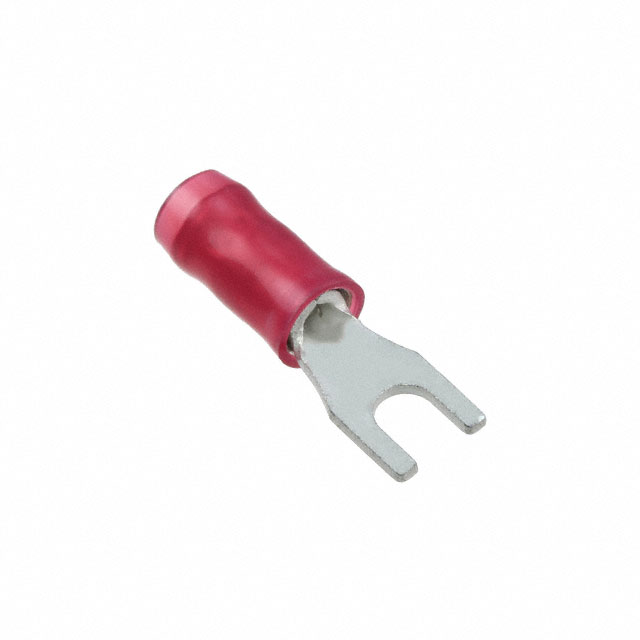

TE Connectivity AMP Connectors 130521
Image shown is a representation only
Manufacturer
Manufacturer No
130521
Packaging
Bulk
Description
CONN SPADE TERM 16-22AWG M2.5
Detailed Description
Red M2.5 Stud Spade Terminal Connector Crimp 16-22 AWG
DataSheet
Color
Red
Series
PIDG
Packaging
Bulk
Insulation
Insulated
Wire Gauge
16-22 AWG
Part Status
Active
Termination
Crimp
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
M2.5 Stud
Terminal Type
Standard
Contact Finish
Tin
Contact Material
Copper
Length - Overall
0.772" (19.61mm)
Width - Outer Edges
0.217" (5.50mm)
Length - Termination
0.417" (10.60mm)
Material - Insulation
Polyamide (PA), Nylon
Tongue Inside Opening
0.146" (3.71mm)
Length - Ring Center to Termination
0.248" (6.30mm)
| Attribute | Value |
|---|---|
| Color | Red |
| Series | PIDG |
| Packaging | Bulk |
| Insulation | Insulated |
| Wire Gauge | 16-22 AWG |
| Part Status | Active |
| Termination | Crimp |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M2.5 Stud |
| Terminal Type | Standard |
| Contact Finish | Tin |
| Contact Material | Copper |
| Length - Overall | 0.772" (19.61mm) |
| Width - Outer Edges | 0.217" (5.50mm) |
| Length - Termination | 0.417" (10.60mm) |
| Material - Insulation | Polyamide (PA), Nylon |
| Tongue Inside Opening | 0.146" (3.71mm) |
| Length - Ring Center to Termination | 0.248" (6.30mm) |
