Step1: Product

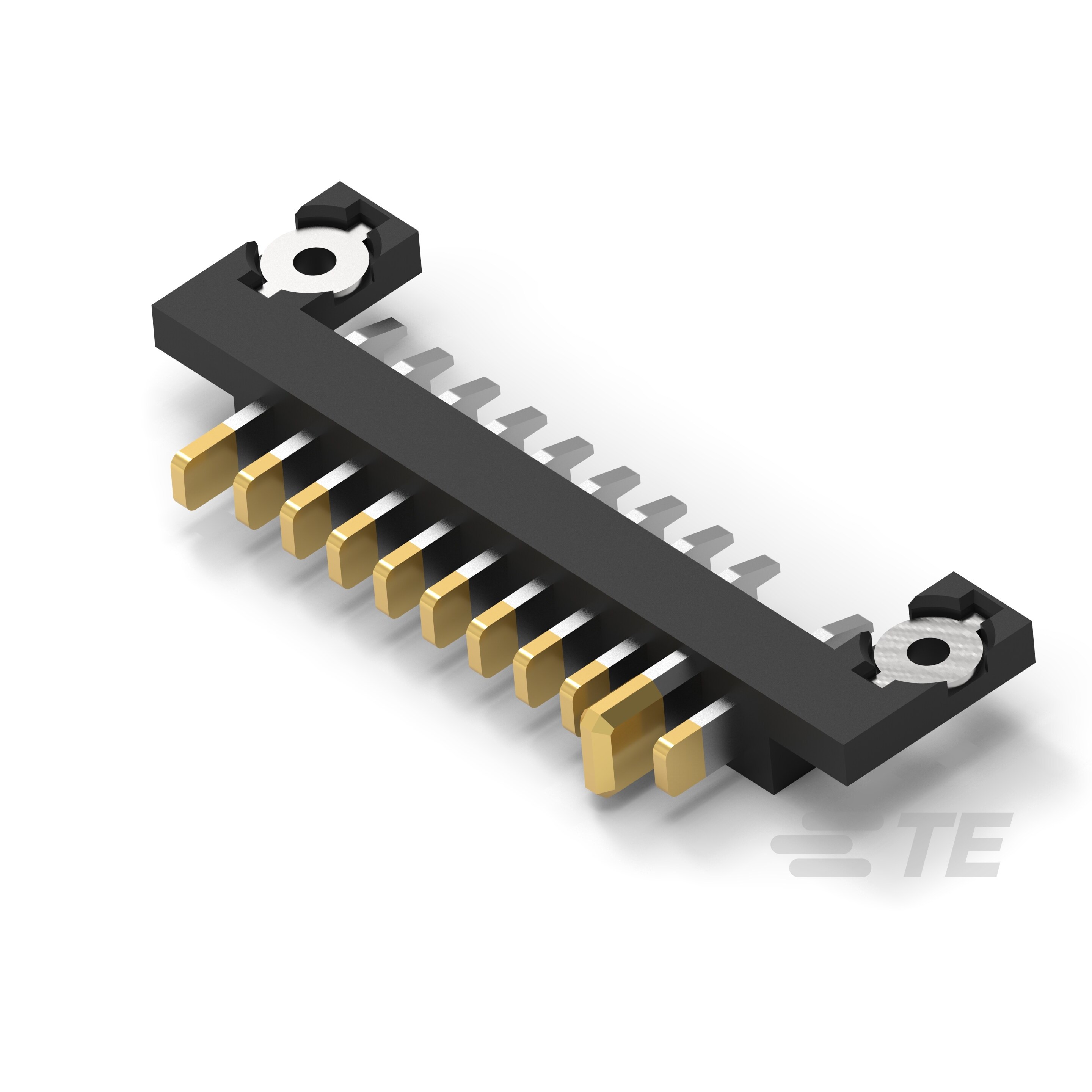

TE Connectivity AMP Connectors 1123738-7
Image shown is a representation only
Manufacturer
Manufacturer No
1123738-7
Packaging
Bulk
Description
CONN HDR 10POS 2.50MM R/A SLDR
Detailed Description
10 Position Header, Male Blades Connector Solder 0.098" (2.50mm) Through Hole, Right Angle
DataSheet
Color
Black
Pitch
0.098" (2.50mm)
Features
Flange
Packaging
Bulk
Part Status
Active
Termination
Solder
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Through Hole, Right Angle
Connector Type
Header, Male Blades
Contact Finish
Gold
Fastening Type
Push-Pull
Number of Rows
1
Voltage Rating
30 V
Connector Style
Battery
Contact Material
Copper Alloy
Base Product Number
1123738
Number of Positions
10
Current Rating (Amps)
6 A
Material - Insulation
Thermoplastic
Operating Temperature
-20°C ~ 80°C
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.098" (2.50mm) |
| Features | Flange |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Male Blades |
| Contact Finish | Gold |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Voltage Rating | 30 V |
| Connector Style | Battery |
| Contact Material | Copper Alloy |
| Base Product Number | 1123738 |
| Number of Positions | 10 |
| Current Rating (Amps) | 6 A |
| Material - Insulation | Thermoplastic |
| Operating Temperature | -20°C ~ 80°C |
