Step1: Product

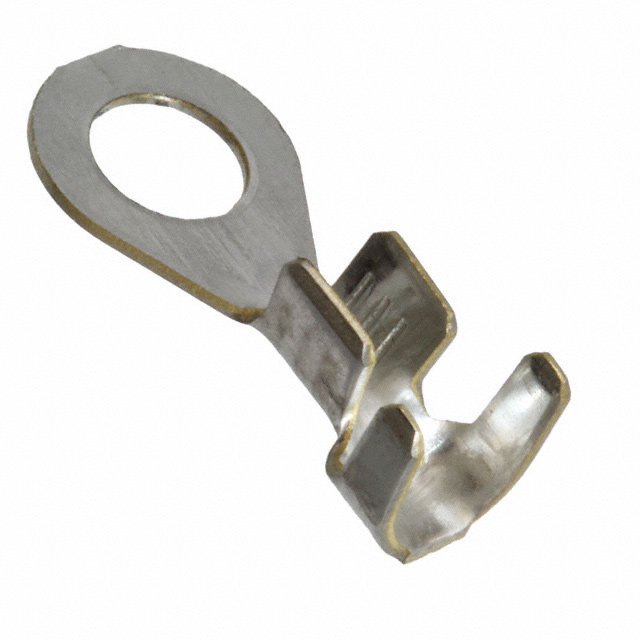

TE Connectivity AMP Connectors 109452-3
Image shown is a representation only
Manufacturer
Manufacturer No
109452-3
Packaging
Tape & Reel (TR)
Description
CONN RING CIRC 14-18AWG #8 CRIMP
Detailed Description
Ring Terminal Connector 8 Stud Circular 14-18 AWG Crimp
DataSheet
Features
Serrated Termination
Packaging
Tape & Reel (TR)
Thickness
0.020" (0.51mm)
Insulation
Non-Insulated
Wire Gauge
14-18 AWG
Part Status
Active
Termination
Crimp
Manufacturer
TE Connectivity AMP Connectors
Mounting Type
Free Hanging (In-Line)
Stud/Tab Size
8 Stud
Terminal Type
Circular
Contact Material
Brass
Length - Overall
0.677" (17.20mm)
Base Product Number
109452
Insulation Diameter
0.105" ~ 0.170" (2.67mm ~ 4.32mm)
Width - Outer Edges
0.296" (7.52mm)
| Attribute | Value |
|---|---|
| Features | Serrated Termination |
| Packaging | Tape & Reel (TR) |
| Thickness | 0.020" (0.51mm) |
| Insulation | Non-Insulated |
| Wire Gauge | 14-18 AWG |
| Part Status | Active |
| Termination | Crimp |
| Manufacturer | TE Connectivity AMP Connectors |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Contact Material | Brass |
| Length - Overall | 0.677" (17.20mm) |
| Base Product Number | 109452 |
| Insulation Diameter | 0.105" ~ 0.170" (2.67mm ~ 4.32mm) |
| Width - Outer Edges | 0.296" (7.52mm) |
