Step1: Product

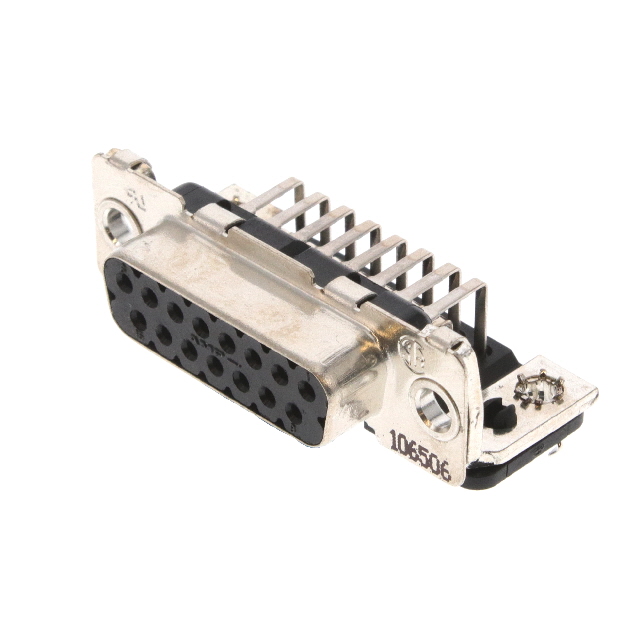

TE Connectivity AMP Connectors 106506-2
Image shown is a representation only
Manufacturer
Manufacturer No
106506-2
Packaging
Tray
Description
CONN D-SUB RCPT 15POS R/A SOLDER
Detailed Description
15 Position D-Sub Receptacle, Female Sockets Connector
DataSheet
Mfr
TE Connectivity AMP Connectors
Color
Black
Series
AMPLIMITE HD-20
Features
Board Lock
Packaging
Tray
Part Status
Active
Termination
Solder
Contact Type
Signal
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Voltage Rating
125V
Backset Spacing
0.406" (10.30mm)
Connector Style
D-Sub
Contact Material
Phosphor Bronze
Base Product Number
106506
Dielectric Material
Polyester, Glass Filled
Number of Positions
15
Current Rating (Amps)
6A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
30.0µin (0.76µm)
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
2 (DA, A)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Color | Black |
| Series | AMPLIMITE HD-20 |
| Features | Board Lock |
| Packaging | Tray |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Voltage Rating | 125V |
| Backset Spacing | 0.406" (10.30mm) |
| Connector Style | D-Sub |
| Contact Material | Phosphor Bronze |
| Base Product Number | 106506 |
| Dielectric Material | Polyester, Glass Filled |
| Number of Positions | 15 |
| Current Rating (Amps) | 6A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 2 (DA, A) |
