Step1: Product

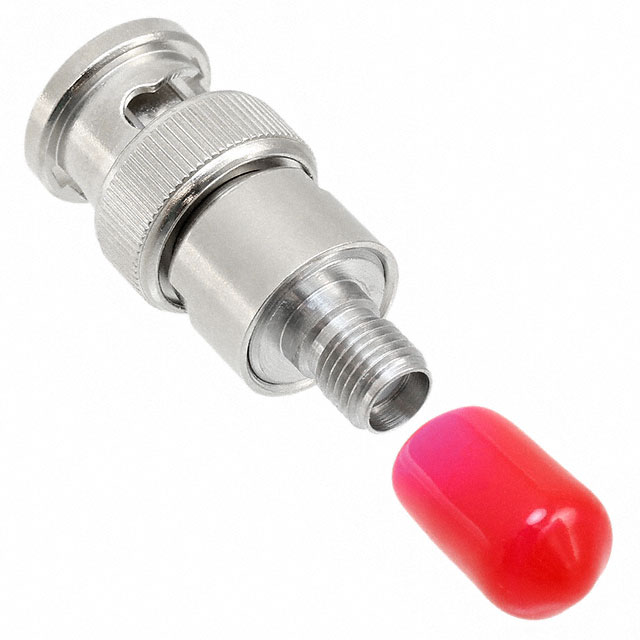

TE Connectivity AMP Connectors 1058081-1
Image shown is a representation only
Manufacturer
Manufacturer No
1058081-1
Packaging
Bag
Description
COAX ADAPT BNC TO SMA
Detailed Description
Adapter Coaxial Connector BNC Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Straight
Impedance
50 Ohms
Packaging
Bag
Body Finish
Nickel, Passivated
Part Status
Obsolete
Adapter Type
Plug to Jack
Body Material
Brass, Stainless Steel
Center Gender
Female to Male
Mounting Type
Free Hanging (In-Line)
Adapter Series
BNC to SMA
Fastening Type
Bayonet Lock, Threaded
Conversion Type
Between Series
Frequency - Max
4 GHz
Base Product Number
1058
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
Convert To (Adapter End)
SMA Jack, Female Socket
Convert From (Adapter End)
BNC Plug, Male Pin
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Straight |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Nickel, Passivated |
| Part Status | Obsolete |
| Adapter Type | Plug to Jack |
| Body Material | Brass, Stainless Steel |
| Center Gender | Female to Male |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | BNC to SMA |
| Fastening Type | Bayonet Lock, Threaded |
| Conversion Type | Between Series |
| Frequency - Max | 4 GHz |
| Base Product Number | 1058 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Convert From (Adapter End) | BNC Plug, Male Pin |
