TE Connectivity AMP Connectors 104656-2

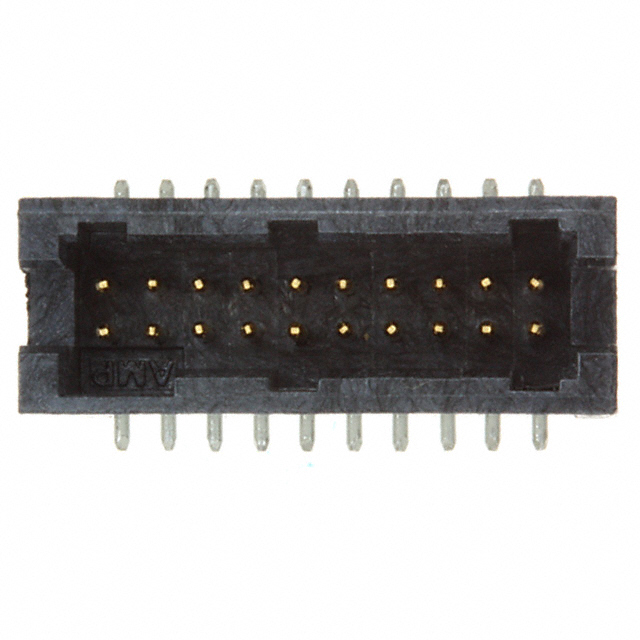

Image shown is a representation only
Manufacturer
Manufacturer No
104656-2
Packaging
Tube
Description
CONN HEADER SMD 20POS 1.27MM
Detailed Description
Connector Header Surface Mount 20 position 0.050" (1.27mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board
Series
AMPMODU 50/50 Grid
Features
Board Lock
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Medical, Military, Telecommunications
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.298" (7.57mm)
Base Product Number
104656
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
20
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin-Lead
Current Rating (Amps)
0.5A per Contact
Operating Temperature
-65°C ~ 105°C
Mated Stacking Heights
8.13mm
Contact Finish - Mating
Gold
Contact Length - Mating
0.120" (3.05mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board |
| Series | AMPMODU 50/50 Grid |
| Features | Board Lock |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Military, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.298" (7.57mm) |
| Base Product Number | 104656 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 20 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Contact Finish - Post | Tin-Lead |
| Current Rating (Amps) | 0.5A per Contact |
| Operating Temperature | -65°C ~ 105°C |
| Mated Stacking Heights | 8.13mm |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.120" (3.05mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
