TE Connectivity AMP Connectors 104196-5

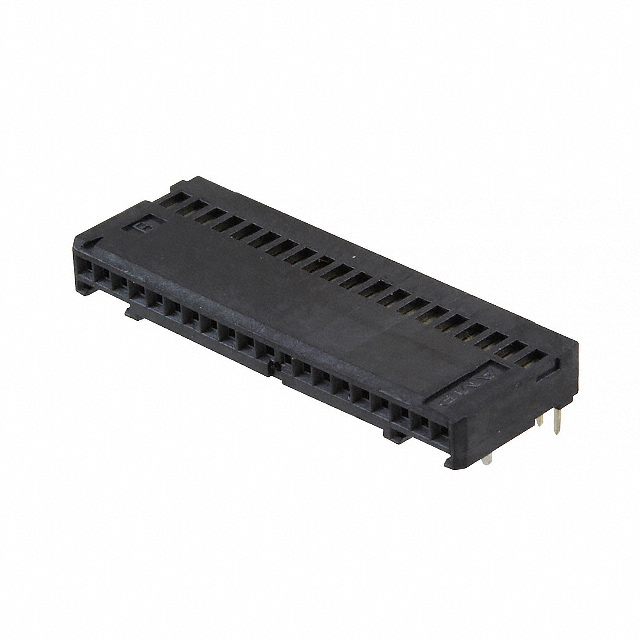

Image shown is a representation only
Manufacturer
Manufacturer No
104196-5
Packaging
Box
Description
CONN RCPT 20P 0.05 GOLD PCB R/A
Detailed Description
20 Position Receptacle Connector 0.050" (1.27mm) Through Hole, Right Angle Gold
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board
Series
AMPMODU System 50
Features
Board Guide
Packaging
Box
Part Status
Active
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
30VAC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.117" (2.97mm)
Base Product Number
104196
Insulation Material
Thermoplastic, Glass Filled
Number of Positions
20
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.100" (2.54mm)
Current Rating (Amps)
1A
Operating Temperature
-65°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board |
| Series | AMPMODU System 50 |
| Features | Board Guide |
| Packaging | Box |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 30VAC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.117" (2.97mm) |
| Base Product Number | 104196 |
| Insulation Material | Thermoplastic, Glass Filled |
| Number of Positions | 20 |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.100" (2.54mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -65°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
