Step1: Product

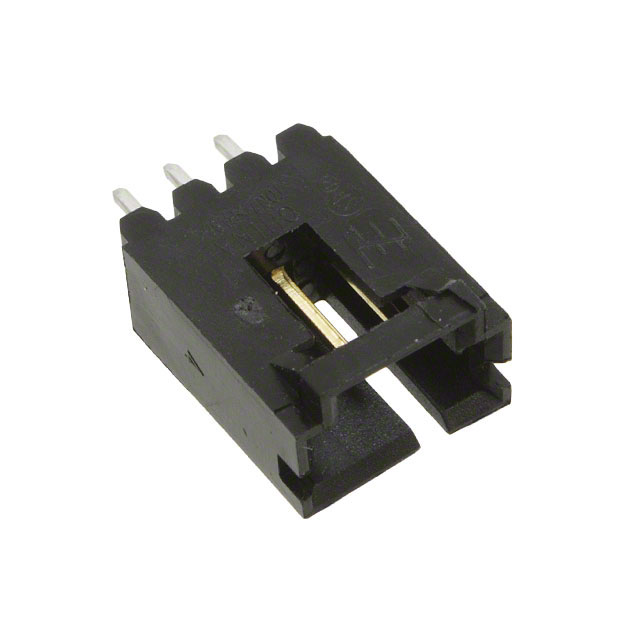

TE Connectivity AMP Connectors 103735-2
Image shown is a representation only
Manufacturer
Manufacturer No
103735-2
Packaging
Tube
Description
CONN HEADER VERT 3POS 2.54MM
Detailed Description
Connector Header Through Hole 3 position 0.100" (2.54mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
AMPMODU MTE
Features
Keying Slot
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Medical, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.535" (13.60mm)
Base Product Number
103735
Insulation Material
Thermoplastic
Number of Positions
3
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.130" (3.30mm)
Current Rating (Amps)
3A
Operating Temperature
-65°C ~ 105°C
Overall Contact Length
0.545" (13.84mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.230" (5.84mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | AMPMODU MTE |
| Features | Keying Slot |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.535" (13.60mm) |
| Base Product Number | 103735 |
| Insulation Material | Thermoplastic |
| Number of Positions | 3 |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.130" (3.30mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -65°C ~ 105°C |
| Overall Contact Length | 0.545" (13.84mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.230" (5.84mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
