Step1: Product

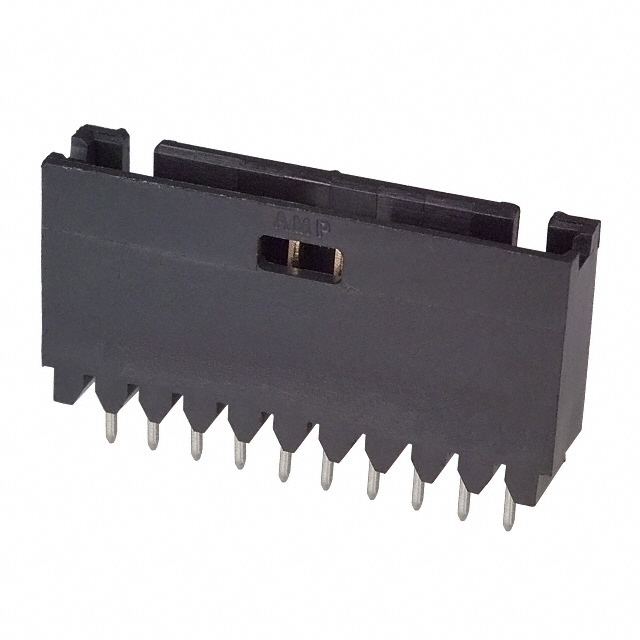

TE Connectivity AMP Connectors 102202-7
Image shown is a representation only
Manufacturer
Manufacturer No
102202-7
Packaging
Tube
Description
CONN HEADER VERT 10POS 2.54MM
Detailed Description
Connector Header Through Hole 10 position 0.100" (2.54mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
AMPMODU Mod II
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.549" (13.94mm)
Base Product Number
102202
Insulation Material
Thermoplastic
Number of Positions
10
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.130" (3.30mm)
Current Rating (Amps)
3A
Operating Temperature
-65°C ~ 105°C
Overall Contact Length
0.589" (14.96mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.240" (6.10mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | AMPMODU Mod II |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.549" (13.94mm) |
| Base Product Number | 102202 |
| Insulation Material | Thermoplastic |
| Number of Positions | 10 |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.130" (3.30mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -65°C ~ 105°C |
| Overall Contact Length | 0.589" (14.96mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
