Step1: Product

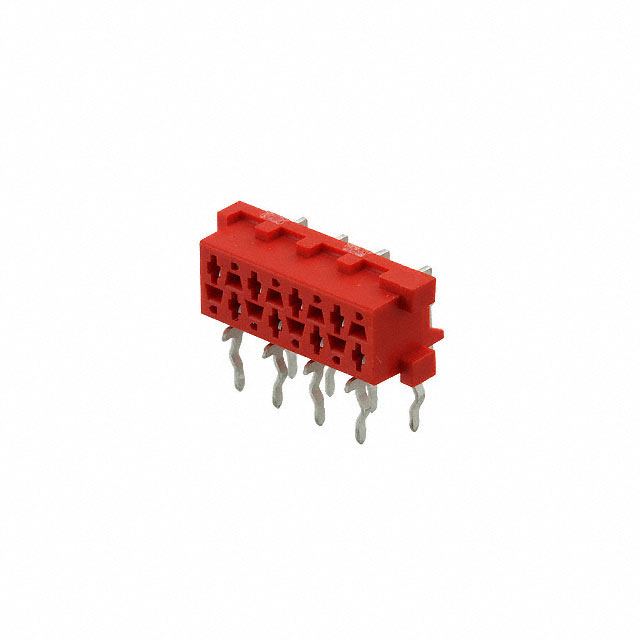

TE Connectivity AMP Connectors 100400-8
Image shown is a representation only
Manufacturer
Manufacturer No
100400-8
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN RCPT 8POS 0.1 TIN PCB R/A
Detailed Description
8 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Board or Cable
Series
Micro-MaTch
Packaging
Tape & Reel (TR); Cut Tape (CT)
Part Status
Active
Termination
Kinked Pin, Solder
Contact Type
Forked
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
100VDC
Contact Material
Phosphor Bronze
Insulation Color
Red
Insulation Height
0.228" (5.80mm)
Base Product Number
100400
Insulation Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Number of Positions
8
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.122" (3.10mm)
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Board or Cable |
| Series | Micro-MaTch |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Contact Type | Forked |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 100VDC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Red |
| Insulation Height | 0.228" (5.80mm) |
| Base Product Number | 100400 |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.122" (3.10mm) |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
