Step1: Product

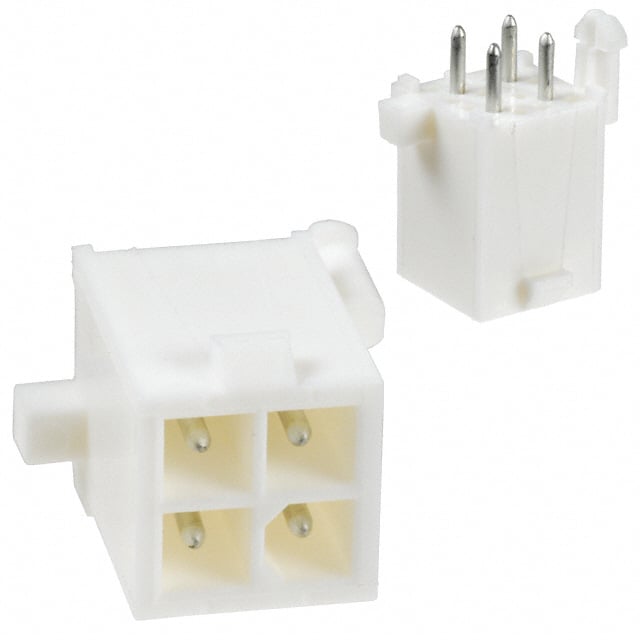

TE Connectivity AMP Connectors 1-770174-0
Image shown is a representation only
Manufacturer
Manufacturer No
1-770174-0
Quantity
4,496
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 4POS 4.14MM
Detailed Description
Connector Header Through Hole 4 position 0.163" (4.14mm)
Datasheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Mini-Universal MATE-N-LOK
Features
Board Lock
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
2
Pitch - Mating
0.163" (4.14mm)
Voltage Rating
600VAC
Contact Material
Brass
Insulation Color
White
Insulation Height
0.531" (13.50mm)
Base Product Number
770174
Insulation Material
Polyamide (PA), Nylon
Number of Positions
4
Row Spacing - Mating
0.163" (4.14mm)
Contact Finish - Post
Tin
Contact Length - Post
0.175" (4.45mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-20°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
150.0µin (3.81µm)
Contact Finish Thickness - Mating
150.0µin (3.81µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Mini-Universal MATE-N-LOK |
| Features | Board Lock |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 2 |
| Pitch - Mating | 0.163" (4.14mm) |
| Voltage Rating | 600VAC |
| Contact Material | Brass |
| Insulation Color | White |
| Insulation Height | 0.531" (13.50mm) |
| Base Product Number | 770174 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 4 |
| Row Spacing - Mating | 0.163" (4.14mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.175" (4.45mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -20°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
