Step1: Product

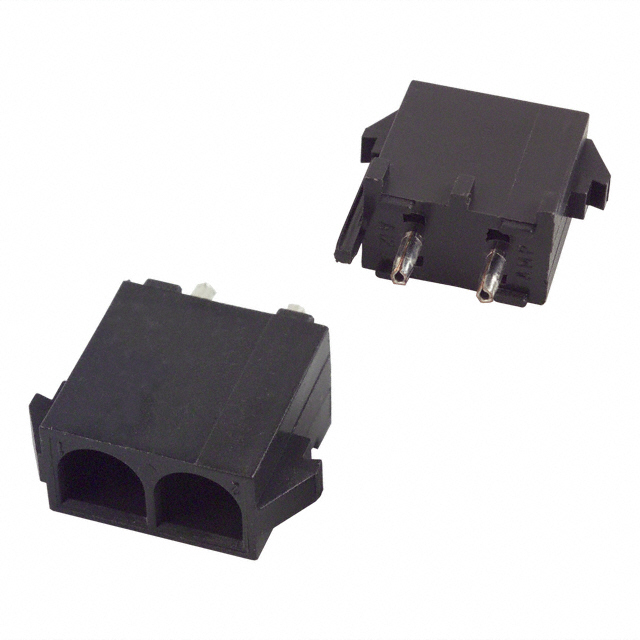

TE Connectivity AMP Connectors 1-641964-1
Image shown is a representation only
Manufacturer
Manufacturer No
1-641964-1
Quantity
163
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 2POS 6.35MM
Detailed Description
Connector Header Through Hole 2 position 0.250" (6.35mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Universal MATE-N-LOK
Features
Board Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Locking Ramp
Number of Rows
1
Pitch - Mating
0.250" (6.35mm)
Voltage Rating
600VAC
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.550" (13.97mm)
Base Product Number
641964
Insulation Material
Polyamide (PA), Nylon
Number of Positions
2
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.155" (3.94mm)
Current Rating (Amps)
12A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Universal MATE-N-LOK |
| Features | Board Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Locking Ramp |
| Number of Rows | 1 |
| Pitch - Mating | 0.250" (6.35mm) |
| Voltage Rating | 600VAC |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.550" (13.97mm) |
| Base Product Number | 641964 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 2 |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.155" (3.94mm) |
| Current Rating (Amps) | 12A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
