Step1: Product

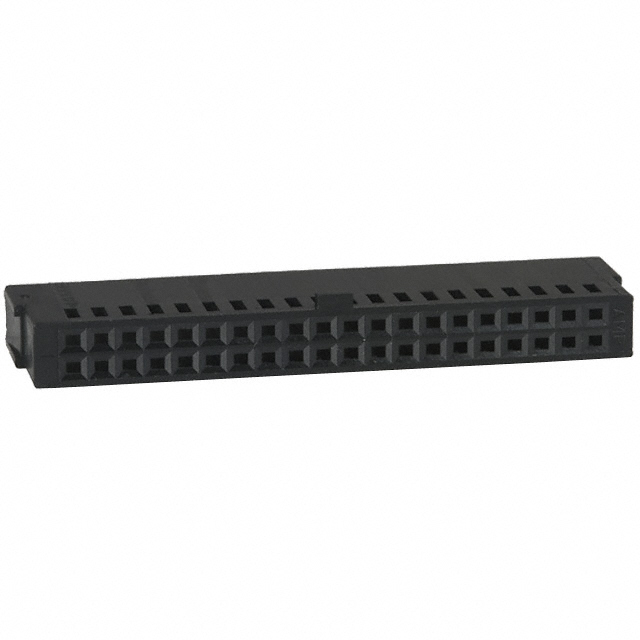

TE Connectivity AMP Connectors 1-487223-0
Image shown is a representation only
Manufacturer
Manufacturer No
1-487223-0
Packaging
Bulk
Description
CONN FFC RCPT HSG 40POS 2.54MM
Detailed Description
Housing FFC, Discrete Wire Housing for Female Contacts Connector Locking Ramp 40Pos 0.100" (2.54mm)
DataSheet
Note
Contacts Sold Separately
Pitch
0.100" (2.54mm)
Packaging
Bulk
Wire Gauge
22-32 AWG
Part Status
Active
Manufacturer
TE Connectivity AMP Connectors
Housing Color
Black
Connector Type
Housing for Female Contacts
Flat Flex Type
FFC, Discrete Wire
Number of Rows
2
Voltage Rating
300 V
Locking Feature
Locking Ramp
Housing Material
Thermoplastic
FFC, FCB Thickness
0.05-0.13mm
Base Product Number
487223
Insulation Diameter
0.025" ~ 0.056" (0.64mm ~ 1.42mm)
Number of Positions
40
Current Rating (Amps)
1.5 A
Operating Temperature
-65°C ~ 105°C
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Note | Contacts Sold Separately |
| Pitch | 0.100" (2.54mm) |
| Packaging | Bulk |
| Wire Gauge | 22-32 AWG |
| Part Status | Active |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Black |
| Connector Type | Housing for Female Contacts |
| Flat Flex Type | FFC, Discrete Wire |
| Number of Rows | 2 |
| Voltage Rating | 300 V |
| Locking Feature | Locking Ramp |
| Housing Material | Thermoplastic |
| FFC, FCB Thickness | 0.05-0.13mm |
| Base Product Number | 487223 |
| Insulation Diameter | 0.025" ~ 0.056" (0.64mm ~ 1.42mm) |
| Number of Positions | 40 |
| Current Rating (Amps) | 1.5 A |
| Operating Temperature | -65°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
