Step1: Product

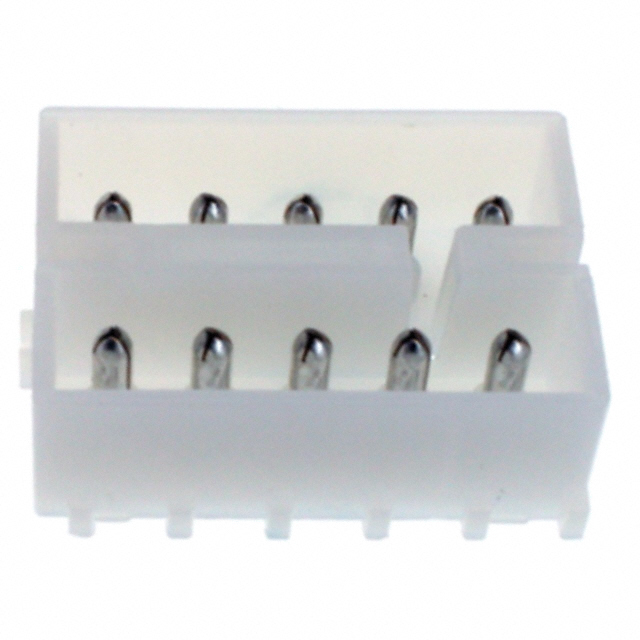

TE Connectivity AMP Connectors 1-380991-0
Image shown is a representation only
Manufacturer
Manufacturer No
1-380991-0
Quantity
49
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 10POS
Detailed Description
Connector Header Through Hole 10 position 0.195" (4.95mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Commercial MATE-N-LOK
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
2
Pitch - Mating
0.195" (4.95mm)
Contact Material
Copper Alloy
Insulation Color
Natural
Insulation Height
0.375" (9.53mm)
Base Product Number
380991
Insulation Material
Polyamide (PA), Nylon
Number of Positions
10
Row Spacing - Mating
0.360" (9.14mm)
Contact Finish - Post
Tin
Contact Length - Post
0.150" (3.81mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.181" (4.60mm)
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Commercial MATE-N-LOK |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.195" (4.95mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Insulation Height | 0.375" (9.53mm) |
| Base Product Number | 380991 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.360" (9.14mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.150" (3.81mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.181" (4.60mm) |
| Number of Positions Loaded | All |
