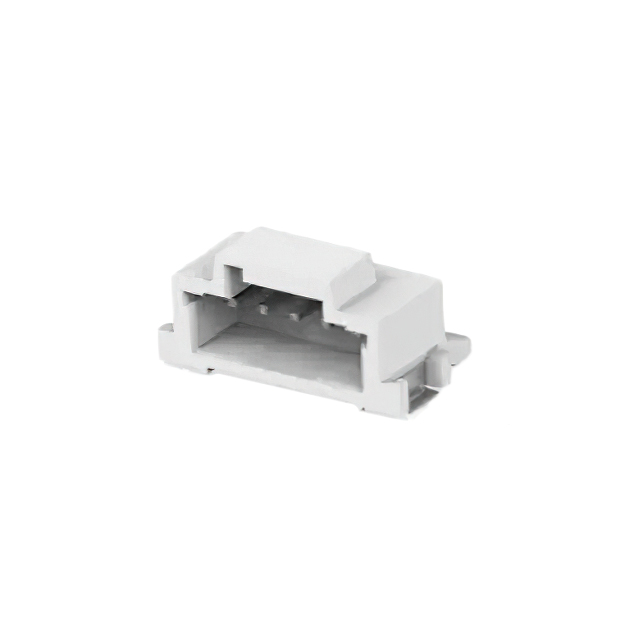

TE Connectivity AMP Connectors 1-2336678-5
Image shown is a representation only
Manufacturer
Manufacturer No
1-2336678-5
Quantity
10
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
SGI2.0 RA SMT HDR ASSY 5P,KEY A,
Detailed Description
Connector Header Surface Mount, Right Angle 5 position 0.079" (2.00mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Grace Inertia 2.0
Features
Glow Wire Compliant, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
50VAC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.295" (7.50mm)
Base Product Number
2336678
Insulation Material
Polyamide (PA), Nylon
Number of Positions
5
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
78.7µin (2.00µm)
Contact Finish Thickness - Mating
78.7µin (2.00µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Grace Inertia 2.0 |
| Features | Glow Wire Compliant, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 50VAC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.295" (7.50mm) |
| Base Product Number | 2336678 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 5 |
| Contact Finish - Post | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
