Step1: Product

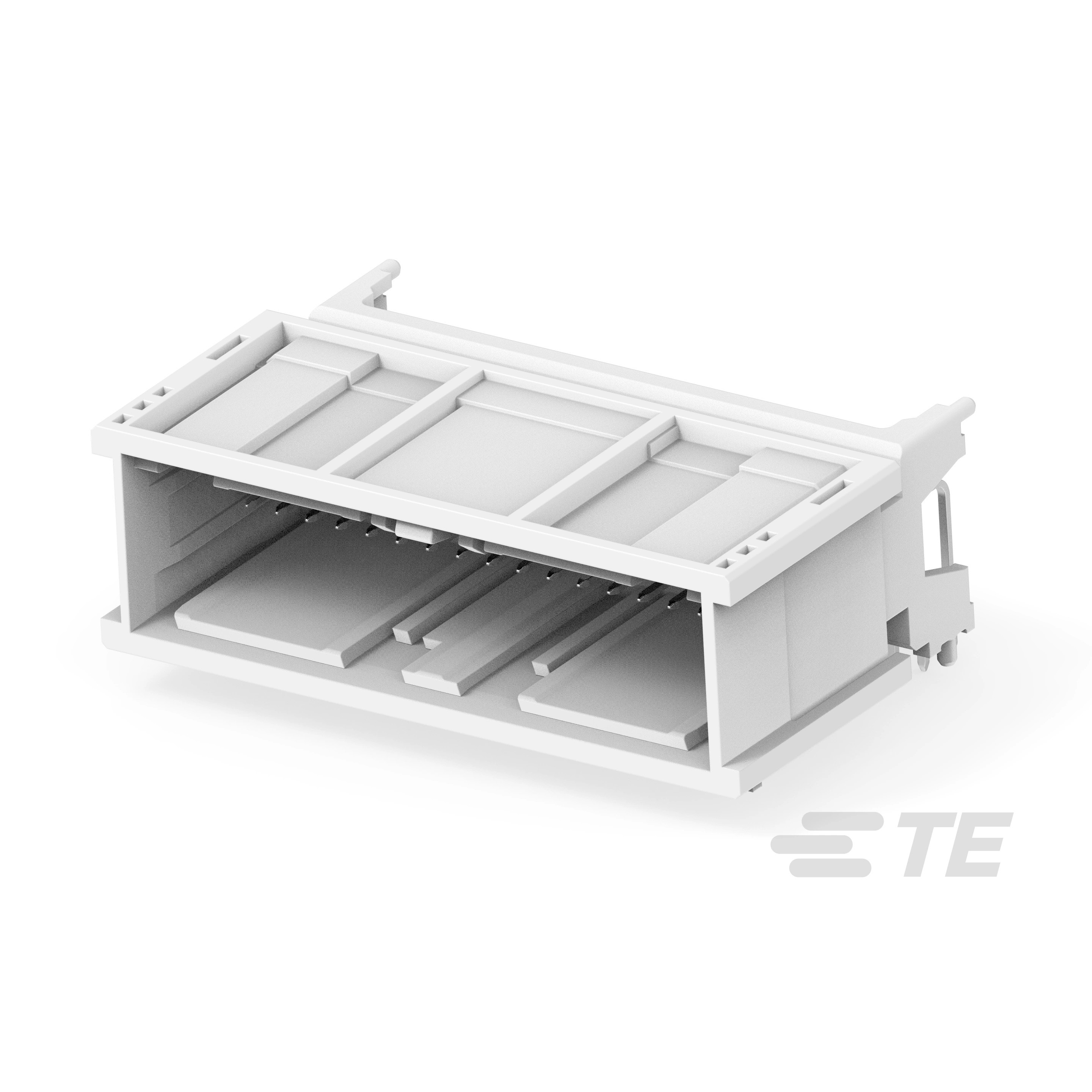

TE Connectivity AMP Connectors 1-2177419-3
Image shown is a representation only
Manufacturer
Manufacturer No
1-2177419-3
Quantity
25
Availability
In Stock
Packaging
Box
Description
32POS,TAB 0.5X0.4,HEADER ASSY,CO
Detailed Description
Connector Header Through Hole, Right Angle 32 position 0.071" (1.80mm)
DataSheet
Mfr
TE Connectivity AMP Connectors
Style
Board to Cable/Wire
Series
Nano Micro Quadlok
Features
Board Guide
Packaging
Box
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.071" (1.80mm)
Voltage Rating
12VDC
Insulation Color
Beige
Insulation Height
0.496" (12.60mm)
Base Product Number
2177419
Number of Positions
32
Contact Finish - Post
Tin
Current Rating (Amps)
1.5A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Style | Board to Cable/Wire |
| Series | Nano Micro Quadlok |
| Features | Board Guide |
| Packaging | Box |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.071" (1.80mm) |
| Voltage Rating | 12VDC |
| Insulation Color | Beige |
| Insulation Height | 0.496" (12.60mm) |
| Base Product Number | 2177419 |
| Number of Positions | 32 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 1.5A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
