Step1: Product

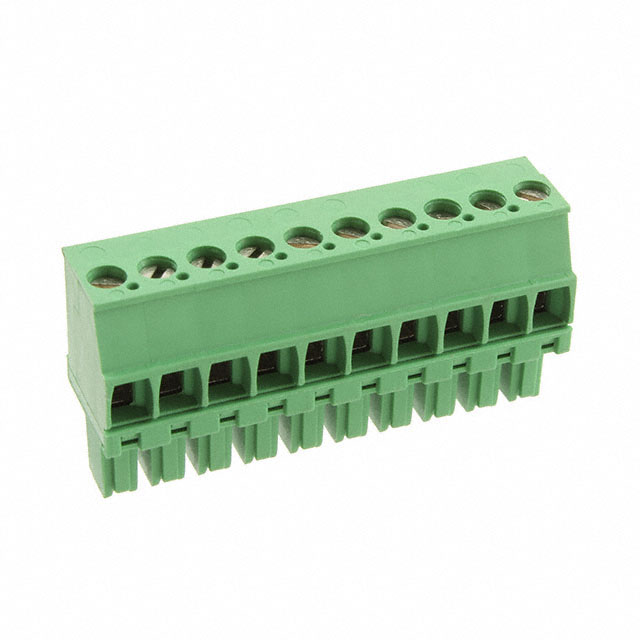

TE Connectivity AMP Connectors 1-1986374-0
Image shown is a representation only
Manufacturer
Manufacturer No
1-1986374-0
Packaging
Bulk
Description
TERM BLOCK PLUG 10POS 3.81MM
Detailed Description
10 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 90° Free Hanging (In-Line)
DataSheet
Type
Plug, Female Sockets
Color
Green
Pitch
0.150" (3.81mm)
Features
Side Stacking
Packaging
Bulk
Screw Size
M2
Part Status
Active
Current - UL
11 A
Manufacturer
TE Connectivity AMP Connectors
Voltage - UL
300 V
Mounting Type
Free Hanging (In-Line)
Plug Wire Entry
90°
Contact Material
Phosphor Bronze
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Insulation Height
0.756" (19.20mm)
Termination Style
Screw - Rising Cage Clamp
Base Product Number
1986374
Number of Positions
10
Positions Per Level
10
Contact Mating Finish
Tin
Operating Temperature
-40°C ~ 110°C
Wire Gauge or Range - AWG
14-30 AWG
Wire Gauge or Range - mm²
0.05-2mm²
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Type | Plug, Female Sockets |
| Color | Green |
| Pitch | 0.150" (3.81mm) |
| Features | Side Stacking |
| Packaging | Bulk |
| Screw Size | M2 |
| Part Status | Active |
| Current - UL | 11 A |
| Manufacturer | TE Connectivity AMP Connectors |
| Voltage - UL | 300 V |
| Mounting Type | Free Hanging (In-Line) |
| Plug Wire Entry | 90° |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Insulation Height | 0.756" (19.20mm) |
| Termination Style | Screw - Rising Cage Clamp |
| Base Product Number | 1986374 |
| Number of Positions | 10 |
| Positions Per Level | 10 |
| Contact Mating Finish | Tin |
| Operating Temperature | -40°C ~ 110°C |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Material Flammability Rating | UL94 V-0 |
