Step1: Product

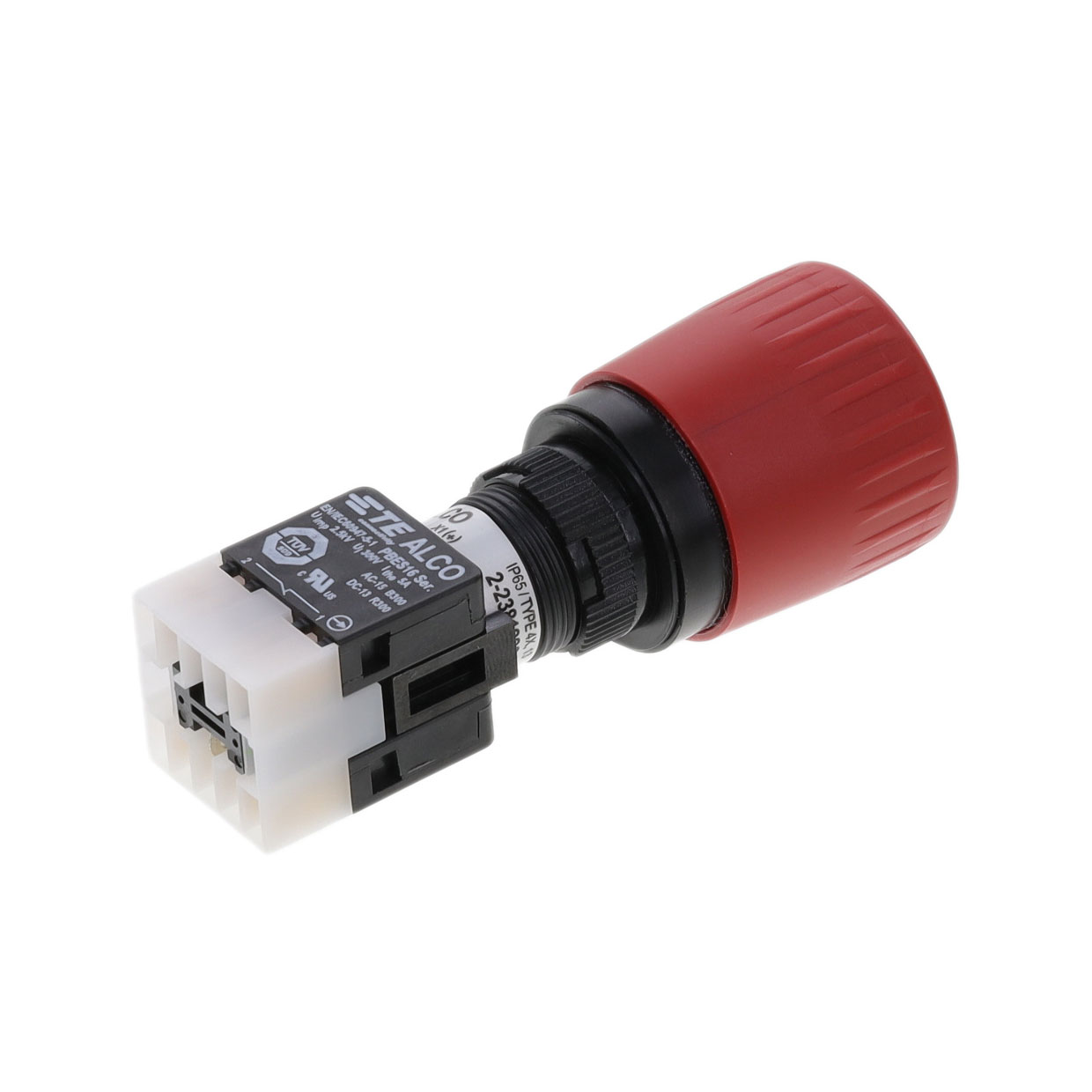

TE Connectivity ALCOSWITCH Switches PBES16L2CR
Image shown is a representation only
Manufacturer
Manufacturer No
PBES16L2CR
Packaging
Box
Description
SWITCH ESTOP TWIST RESET 3A 125V
Detailed Description
Emergency Stop Switch SPST-NO + SPST-NC Panel Mount, Front
DataSheet
Series
PBES16
Circuit
SPST-NO + SPST-NC
Packaging
Box
Part Status
Active
Manufacturer
TE Connectivity ALCOSWITCH Switches
Mounting Type
Panel Mount, Front
Reset Operation
Twist
Switch Function
On-Off, Off-On
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection
IP65 - Dust Tight, Water Resistant
Voltage Rating - AC
125 V
Voltage Rating - DC
125 V
Current Rating (Amps)
3A (AC), 220mA (DC)
Operating Temperature
-25°C ~ 55°C
Panel Cutout Dimensions
Circular - 16.00mm Dia
Illumination Voltage (Nominal)
24 VDC
| Attribute | Value |
|---|---|
| Series | PBES16 |
| Circuit | SPST-NO + SPST-NC |
| Packaging | Box |
| Part Status | Active |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Mounting Type | Panel Mount, Front |
| Reset Operation | Twist |
| Switch Function | On-Off, Off-On |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Current Rating (Amps) | 3A (AC), 220mA (DC) |
| Operating Temperature | -25°C ~ 55°C |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Illumination Voltage (Nominal) | 24 VDC |
