Step1: Product

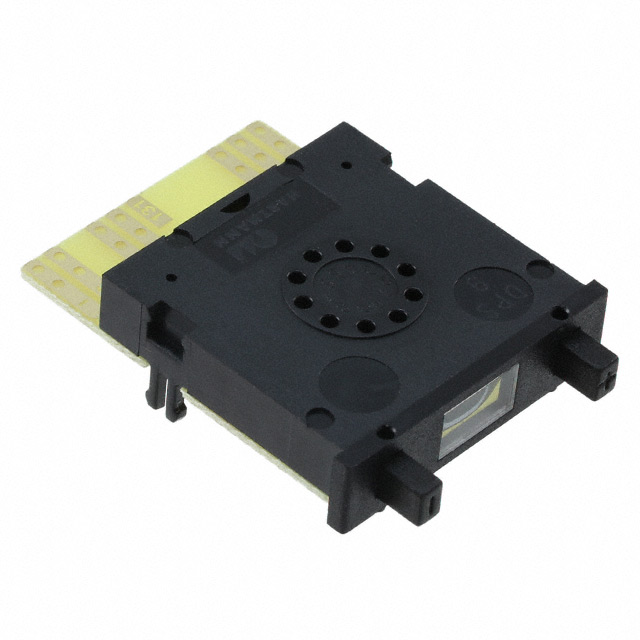

TE Connectivity ALCOSWITCH Switches DPS9131AK
Image shown is a representation only
Manufacturer
Manufacturer No
DPS9131AK
Packaging
Bulk
Description
SWITCH THUMBWHEEL BCD 0.4VA 20V
Detailed Description
Thumbwheel Switch BCD 0.4VA @ 20VAC/DC Panel Mount, Snap-In
DataSheet
Color
Black
Series
DPS9

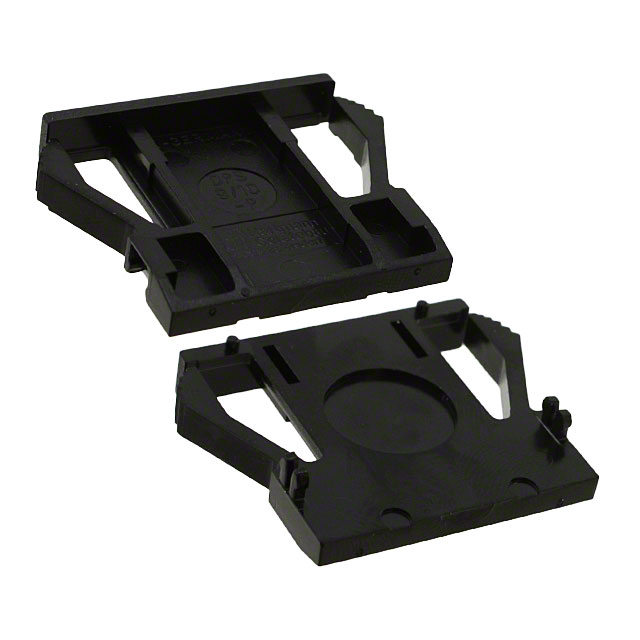

End Caps
Sold Separately
Read Out
0 ~ 9
Packaging
Bulk
Output Code
BCD
Part Status
Not For New Designs
Manufacturer
TE Connectivity ALCOSWITCH Switches
Actuator Type
Pushwheel
Mounting Type
Panel Mount, Snap-In
Section Width
0.315" (8.00mm)
Contact Finish
Gold
Contact Material
Copper Alloy
Housing Material
Polyphenylene Oxide (PPO)
Termination Style
Card Edge/Solder Pad
Number of Sections
1
Base Product Number
DPS9131A
Depth Behind Flange
39.00mm
Operating Temperature
-20°C ~ 80°C
Contact Rating @ Voltage
0.4VA @ 20VAC/DC
Display Characters - Height
0.268" (6.80mm)
| Attribute | Value |
|---|---|
| Color | Black |
| Series | DPS9 |
| End Caps | Sold Separately |
| Read Out | 0 ~ 9 |
| Packaging | Bulk |
| Output Code | BCD |
| Part Status | Not For New Designs |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Actuator Type | Pushwheel |
| Mounting Type | Panel Mount, Snap-In |
| Section Width | 0.315" (8.00mm) |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Housing Material | Polyphenylene Oxide (PPO) |
| Termination Style | Card Edge/Solder Pad |
| Number of Sections | 1 |
| Base Product Number | DPS9131A |
| Depth Behind Flange | 39.00mm |
| Operating Temperature | -20°C ~ 80°C |
| Contact Rating @ Voltage | 0.4VA @ 20VAC/DC |
| Display Characters - Height | 0.268" (6.80mm) |
