Step1: Product

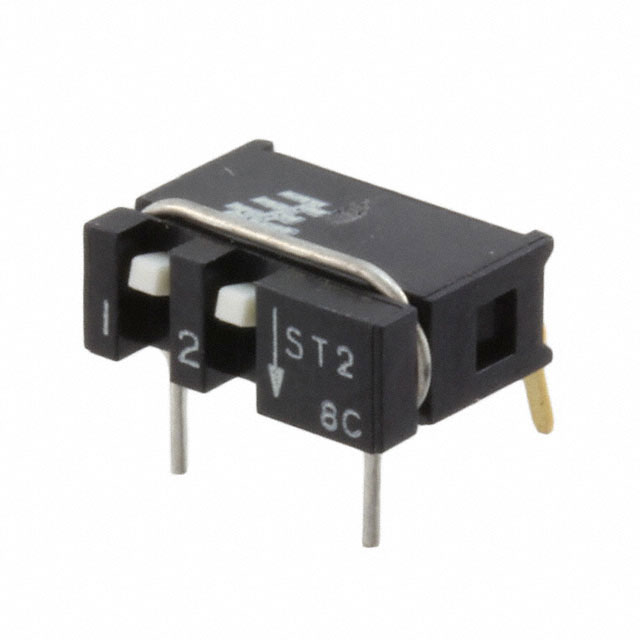

TE Connectivity ALCOSWITCH Switches 1977105-1
Image shown is a representation only
Manufacturer
Manufacturer No
1977105-1
Packaging
Tube
Description
SWITCH SLIDE DIP SPST 0.01A 5V
Detailed Description
Dip Switch SPST 2 Position Through Hole, Right Angle Slide (Standard) Actuator 10mA 5VDC
Datasheet
Pitch
0.100" (2.54mm), Full
Length
0.326" (8.28mm)
Series
STR
Circuit
SPST
Washable
Yes
Packaging
Tube
Manufacturer
TE Connectivity ALCOSWITCH Switches
Actuator Type
Slide (Standard)
Body Material
Polyphenylene Sulfide (PPS)
Mounting Type
Through Hole, Right Angle
Actuator Level
Flush, Recessed
Contact Finish
Gold
Voltage Rating
5VDC
Electrical Life
1,000 Cycles
Mechanical Life
1,000 Cycles
Contact Material
Copper Alloy
Termination Style
PC Pin
Height Above Board
0.244" (6.20mm)
Base Product Number
1977105
Number of Positions
2
Current Rating (Amps)
10mA
Operating Temperature
-30°C ~ 85°C
| Attribute | Value |
|---|---|
| Pitch | 0.100" (2.54mm), Full |
| Length | 0.326" (8.28mm) |
| Series | STR |
| Circuit | SPST |
| Washable | Yes |
| Packaging | Tube |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Actuator Level | Flush, Recessed |
| Contact Finish | Gold |
| Voltage Rating | 5VDC |
| Electrical Life | 1,000 Cycles |
| Mechanical Life | 1,000 Cycles |
| Contact Material | Copper Alloy |
| Termination Style | PC Pin |
| Height Above Board | 0.244" (6.20mm) |
| Base Product Number | 1977105 |
| Number of Positions | 2 |
| Current Rating (Amps) | 10mA |
| Operating Temperature | -30°C ~ 85°C |
