Step1: Product

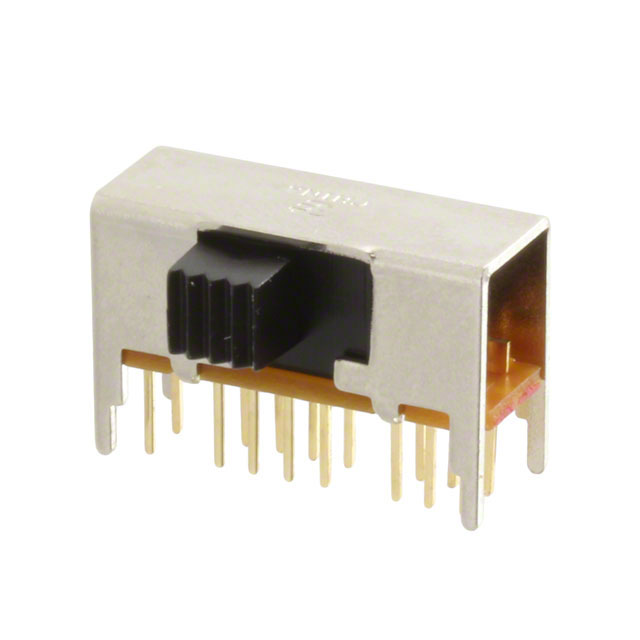

TE Connectivity ALCOSWITCH Switches 1825268-2
Image shown is a representation only
Manufacturer
Manufacturer No
1825268-2
Packaging
Bulk
Description
SWITCH SLIDE 4P3T 0.4VA 20V
Detailed Description
Slide Switch 4P3T Through Hole, Right Angle
DataSheet
Series
MSS
Circuit
4P3T
Features
Epoxy Sealed Terminals
Packaging
Bulk
Part Status
Active
Manufacturer
TE Connectivity ALCOSWITCH Switches
Actuator Type
Standard
Mounting Type
Through Hole, Right Angle
Switch Travel
2.00mm
Contact Finish
Gold
Contact Timing
Shorting (MBB)
Actuator Length
4.20mm
Electrical Life
15,000 Cycles
Mechanical Life
15,000 Cycles
Operating Force
600gf
Switch Function
On-On-On
Contact Material
Copper Alloy
Actuator Material
Polyoxymethylene (Acetal) (POM)
Termination Style
PC Pin
Base Product Number
1825268
Voltage Rating - AC
20 V
Voltage Rating - DC
20 V
Current Rating (Amps)
0.4VA (AC/DC)
Operating Temperature
-20°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | MSS |
| Circuit | 4P3T |
| Features | Epoxy Sealed Terminals |
| Packaging | Bulk |
| Part Status | Active |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Switch Travel | 2.00mm |
| Contact Finish | Gold |
| Contact Timing | Shorting (MBB) |
| Actuator Length | 4.20mm |
| Electrical Life | 15,000 Cycles |
| Mechanical Life | 15,000 Cycles |
| Operating Force | 600gf |
| Switch Function | On-On-On |
| Contact Material | Copper Alloy |
| Actuator Material | Polyoxymethylene (Acetal) (POM) |
| Termination Style | PC Pin |
| Base Product Number | 1825268 |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Operating Temperature | -20°C ~ 85°C |
