Step1: Product

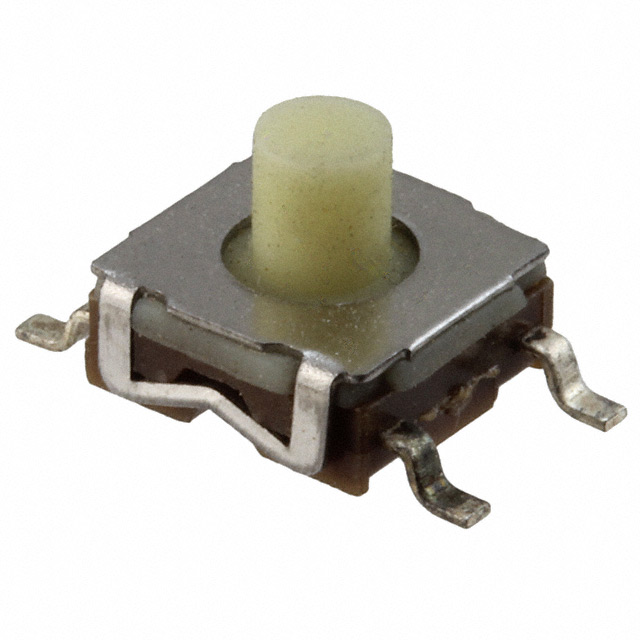

TE Connectivity ALCOSWITCH Switches 1571634-1
Image shown is a representation only
Manufacturer
Manufacturer No
1571634-1
Packaging
Bag
Description
SWITCH TACTILE SPST-NO 0.05A 24V
Detailed Description
Tactile Switch SPST-NO Top Actuated Surface Mount
DataSheet
Mfr
TE Connectivity ALCOSWITCH Switches
Circuit
SPST-NO
Outline
6.20mm x 6.20mm
Packaging
Bag
Part Status
Active
Illumination
Non-Illuminated
Actuator Type
Standard
Mounting Type
Surface Mount
Switch Travel
0.15mm
Mechanical Life
5,000,000 Cycles
Operating Force
160gf
Switch Function
Off-Mom
Actuator Material
Silicone Rubber
Termination Style
Gull Wing
Base Product Number
1571634
Actuator Orientation
Top Actuated
Operating Temperature
-35°C ~ 85°C
Contact Rating @ Voltage
0.05A @ 24VDC
Actuator Height off PCB, Vertical
5.00mm
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity ALCOSWITCH Switches |
| Circuit | SPST-NO |
| Outline | 6.20mm x 6.20mm |
| Packaging | Bag |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Actuator Type | Standard |
| Mounting Type | Surface Mount |
| Switch Travel | 0.15mm |
| Mechanical Life | 5,000,000 Cycles |
| Operating Force | 160gf |
| Switch Function | Off-Mom |
| Actuator Material | Silicone Rubber |
| Termination Style | Gull Wing |
| Base Product Number | 1571634 |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -35°C ~ 85°C |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Height off PCB, Vertical | 5.00mm |
