Step1: Product

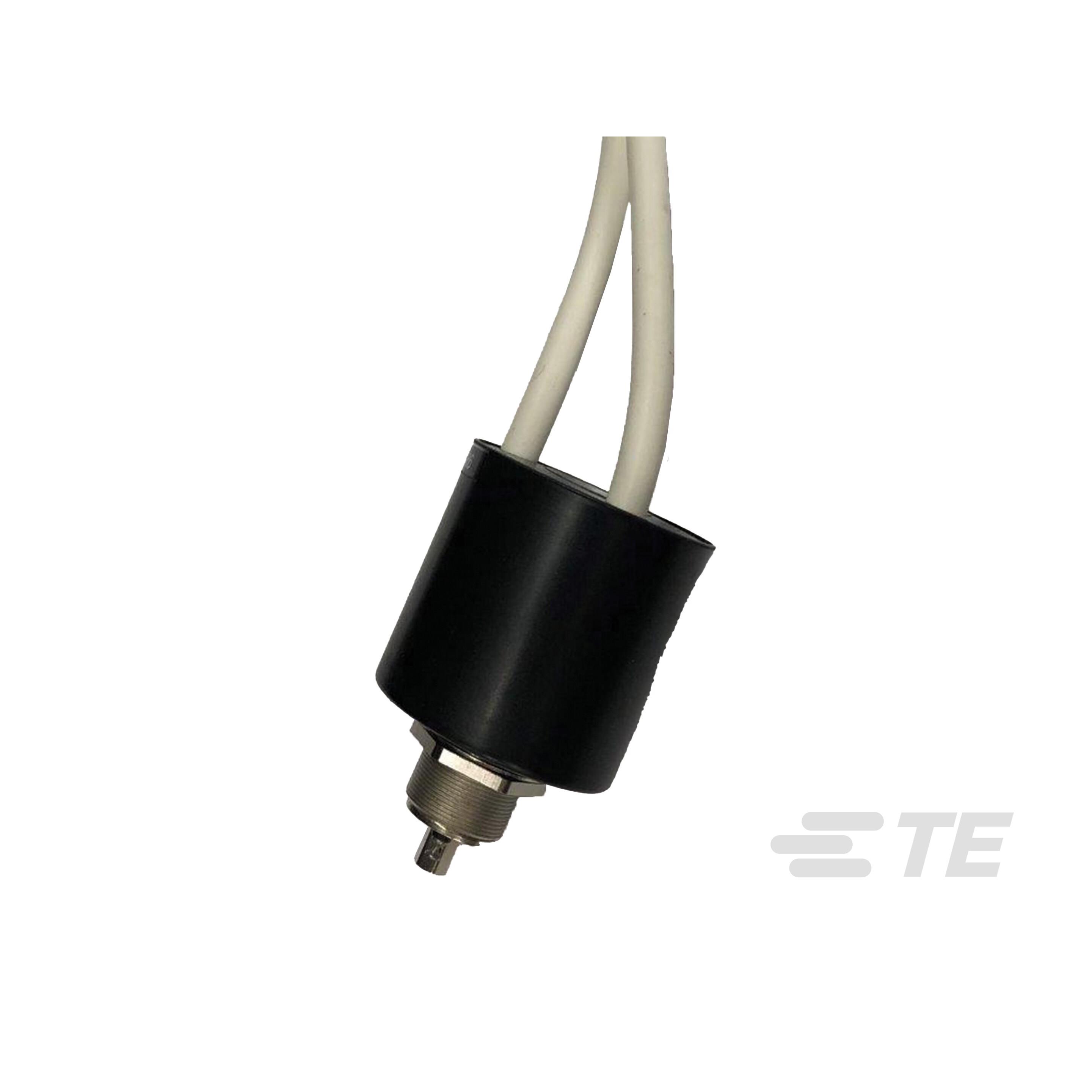

TE Connectivity Aerospace, Defense and Marine LEV100A7ANH
Image shown is a representation only
Manufacturer
Manufacturer No
LEV100A7ANH
Packaging
Bulk
Description
LEV100A7ANH=RELAY, 28VDC SPST-NO
Detailed Description
Contactor SPST-NO (DM) (1 Form X) 100 A 28VDC Coil Chassis Mount
Datasheet
Series
LEV100, KILOVAC
Features
Sealed - Hermetically
Packaging
Bulk
Coil Power
5.8W
Coil Current
205.9 mA
Coil Voltage
28VDC
Contact Form
SPST-NO (DM) (1 Form X)
Manufacturer
TE Connectivity Aerospace, Defense and Marine
Operate Time
25 ms
Release Time
10 ms
Mounting Type
Chassis Mount
Coil Resistance
136Ohms
Contact Material
Copper
Switching Voltage
900VDC - Max
Termination Style
Stud
Base Product Number
LEV100
Operating Temperature
-40°C ~ 85°C
Contact Rating (Current)
100 A
| Attribute | Value |
|---|---|
| Series | LEV100, KILOVAC |
| Features | Sealed - Hermetically |
| Packaging | Bulk |
| Coil Power | 5.8W |
| Coil Current | 205.9 mA |
| Coil Voltage | 28VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Operate Time | 25 ms |
| Release Time | 10 ms |
| Mounting Type | Chassis Mount |
| Coil Resistance | 136Ohms |
| Contact Material | Copper |
| Switching Voltage | 900VDC - Max |
| Termination Style | Stud |
| Base Product Number | LEV100 |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 100 A |
