Step1: Product
TE Connectivity Aerospace, Defense and Marine 530340-1

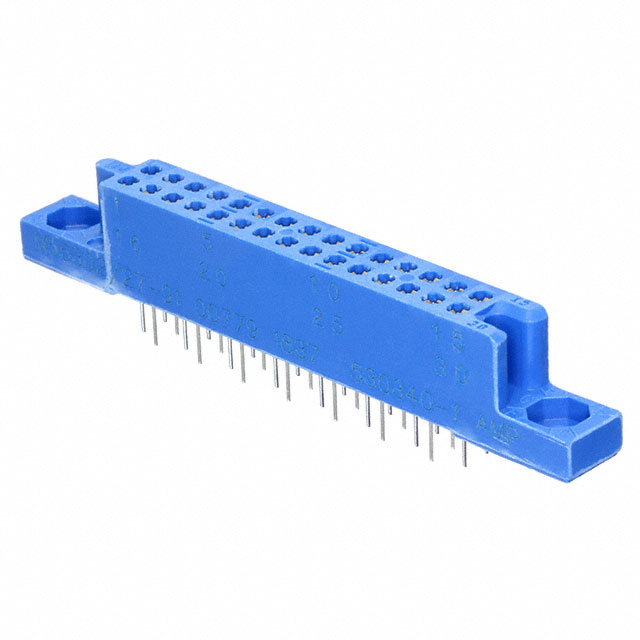

Image shown is a representation only
Manufacturer
Manufacturer No
530340-1
Packaging
Bulk
Description
CONN RCPT 30POS 0.1 GOLD PCB
Detailed Description
30 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
Mfr
TE Connectivity Aerospace, Defense and Marine
Style
Board to Board
Series
Military, MIL-DTL-55302, 1000 Box
Features
Mating Guide
Packaging
Bulk
Termination
Solder
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Insulation Color
Blue
Insulation Height
0.400" (10.16mm)
Base Product Number
530340
Insulation Material
Diallyl Phthalate (DAP)
Number of Positions
30
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin-Lead
Contact Length - Post
0.156" (3.96mm)
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
50.0µin (1.27µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Style | Board to Board |
| Series | Military, MIL-DTL-55302, 1000 Box |
| Features | Mating Guide |
| Packaging | Bulk |
| Termination | Solder |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Insulation Color | Blue |
| Insulation Height | 0.400" (10.16mm) |
| Base Product Number | 530340 |
| Insulation Material | Diallyl Phthalate (DAP) |
| Number of Positions | 30 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Length - Post | 0.156" (3.96mm) |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
