Step1: Product
TE Connectivity Aerospace, Defense and Marine 1617340-4

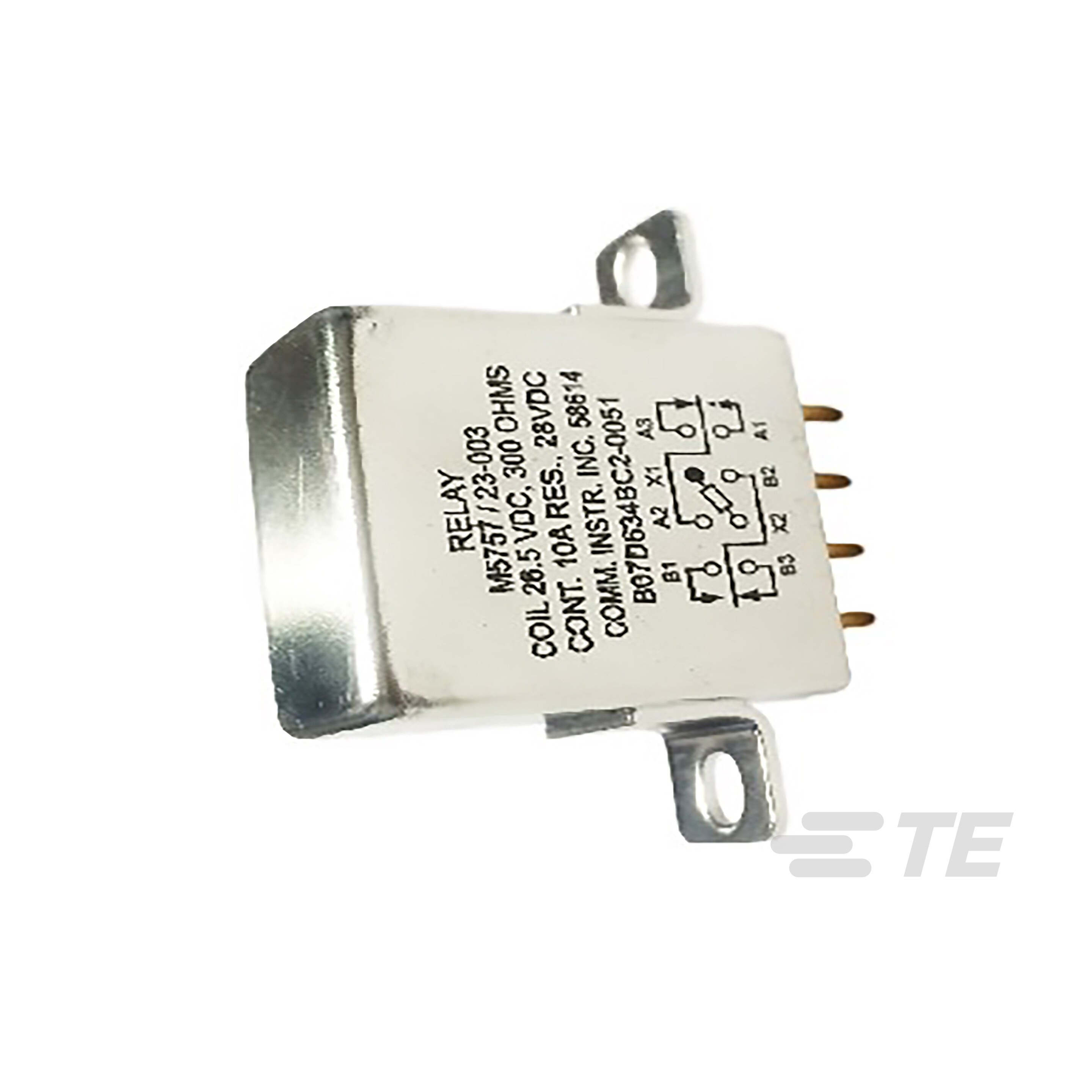

Image shown is a representation only
Manufacturer
Manufacturer No
1617340-4
Packaging
Bulk
Description
B07D692BA2-0121=M5757/23-011
Detailed Description
General Purpose Relay DPDT (2 Form C) 6VDC Coil Chassis Mount
Datasheet
Mfr
TE Connectivity Aerospace, Defense and Marine
Series
07, CII
Coil Type
Non Latching
Packaging
Bulk
Relay Type
General Purpose
Seal Rating
Sealed - Hermetically
Coil Current
315.8 mA
Coil Voltage
6VDC
Contact Form
DPDT (2 Form C)
Operate Time
10 ms
Release Time
10 ms
Mounting Type
Chassis Mount
Coil Resistance
19 Ohms
Contact Material
Silver Cadmium Oxide (AgCdO)
Switching Voltage
115VAC, 28VDC - Nom
Termination Style
Solder Hook
Base Product Number
B07D69
Must Operate Voltage
3.3 VDC
Must Release Voltage
0.4 VDC
Operating Temperature
-65°C ~ 125°C
Contact Rating (Current)
10 A
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Series | 07, CII |
| Coil Type | Non Latching |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Hermetically |
| Coil Current | 315.8 mA |
| Coil Voltage | 6VDC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Mounting Type | Chassis Mount |
| Coil Resistance | 19 Ohms |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Switching Voltage | 115VAC, 28VDC - Nom |
| Termination Style | Solder Hook |
| Base Product Number | B07D69 |
| Must Operate Voltage | 3.3 VDC |
| Must Release Voltage | 0.4 VDC |
| Operating Temperature | -65°C ~ 125°C |
| Contact Rating (Current) | 10 A |
