Step1: Product
TE Connectivity Aerospace, Defense and Marine 1218434-2

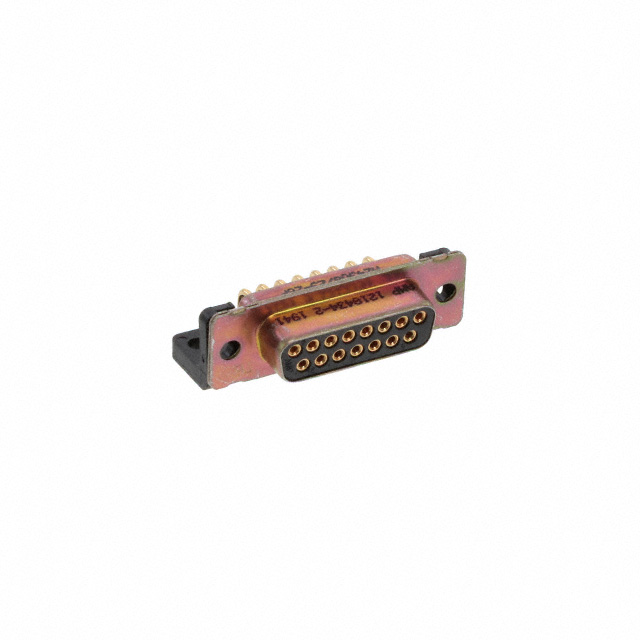

Image shown is a representation only
Manufacturer
Manufacturer No
1218434-2
Packaging
Bulk
Description
CONN D-SUB RCPT 15POS R/A SOLDER
Detailed Description
15 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
Mfr
TE Connectivity Aerospace, Defense and Marine
Color
Black
Series
Military, MIL-DTL-24308, AMPLIMITE 109
Packaging
Bulk
Termination
Solder
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Housing/Shell (Unthreaded)
Number of Rows
2
Backset Spacing
0.318" (8.08mm)
Connector Style
D-Sub
Contact Material
Brass
Base Product Number
1218434
Number of Positions
15
Current Rating (Amps)
5A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Cadmium Plated
Contact Finish Thickness
10.0µin (0.25µm)
Shell Size, Connector Layout
2 (DA, A)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity Aerospace, Defense and Marine |
| Color | Black |
| Series | Military, MIL-DTL-24308, AMPLIMITE 109 |
| Packaging | Bulk |
| Termination | Solder |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 2 |
| Backset Spacing | 0.318" (8.08mm) |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Base Product Number | 1218434 |
| Number of Positions | 15 |
| Current Rating (Amps) | 5A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Cadmium Plated |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Shell Size, Connector Layout | 2 (DA, A) |
