Step1: Product

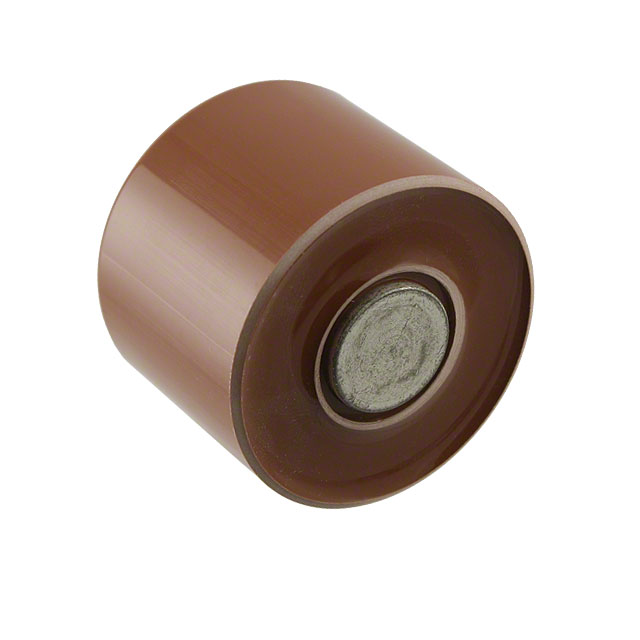

TDK TSF-40C
Image shown is a representation only
Manufacturer
Manufacturer No
TSF-40C
Quantity
61281
Availability
In Stock
Package
Disk, Metal Fitting
Packaging
Bulk
Description
CAP CER 1080PF 20KV Z5T DISK
Detailed Description
1080 pF ±10% 20000V (20kV) Ceramic Capacitor Z5T Disk, Metal Fitting
DataSheet
Mfr
TDK
Series
TSF
Packaging
Bulk
Tolerance
±10%
Capacitance
1080 pF
Part Status
Active
Applications
General Purpose
Mounting Type
Requires Holder
Package / Case
Disk, Metal Fitting
Voltage - Rated
20000V (20kV)
Size / Dimension
1.575" Dia x 1.299" L (40.00mm x 33.00mm)
Operating Temperature
-30°C ~ 85°C
Temperature Coefficient
Z5T
| Attribute | Value |
|---|---|
| Mfr | TDK |
| Series | TSF |
| Packaging | Bulk |
| Tolerance | ±10% |
| Capacitance | 1080 pF |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Requires Holder |
| Package / Case | Disk, Metal Fitting |
| Voltage - Rated | 20000V (20kV) |
| Size / Dimension | 1.575" Dia x 1.299" L (40.00mm x 33.00mm) |
| Operating Temperature | -30°C ~ 85°C |
| Temperature Coefficient | Z5T |
