Step1: Product

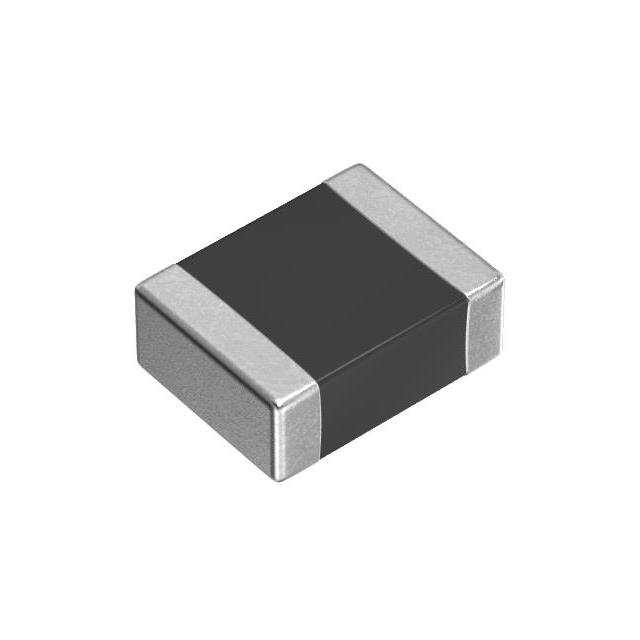

TDK TMS322512ALM-1R0MTAA
Image shown is a representation only
Manufacturer
Manufacturer No
TMS322512ALM-1R0MTAA
Quantity
1710
Availability
In Stock
Package
1210 (3225 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FIXED IND 1UH 4A 37 MOHM SMD
Detailed Description
1 µH Shielded Thin Film Inductor 4 A 37mOhm Max 1210 (3225 Metric) Soft Termination
DataSheet
Mfr
TDK
Type
Thin Film
Series
TMS-ALM
Features
Soft Termination
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Tolerance
±20%
Inductance
1 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
1210 (3225 Metric)
Material - Core
Metal
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Base Product Number
TMS322512ALM
DC Resistance (DCR)
37mOhm Max
Current Rating (Amps)
4 A
Height - Seated (Max)
0.047" (1.20mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
1210
Current - Saturation (Isat)
4.6A
Inductance Frequency - Test
1 MHz
| Attribute | Value |
|---|---|
| Mfr | TDK |
| Type | Thin Film |
| Series | TMS-ALM |
| Features | Soft Termination |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Tolerance | ±20% |
| Inductance | 1 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Material - Core | Metal |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Base Product Number | TMS322512ALM |
| DC Resistance (DCR) | 37mOhm Max |
| Current Rating (Amps) | 4 A |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 1210 |
| Current - Saturation (Isat) | 4.6A |
| Inductance Frequency - Test | 1 MHz |
