Step1: Product

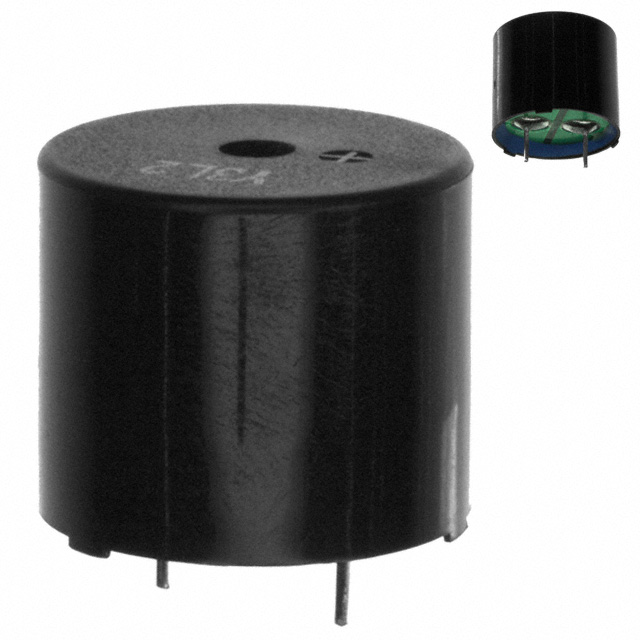

TDK SD1614TT-B3M
Image shown is a representation only
Manufacturer
Manufacturer No
SD1614TT-B3M
Packaging
Bulk
Description
BUZZER MAGNETIC 12V 16MM TH
Detailed Description
Buzzers Transducer, Externally Driven Magnetic 12 V 100mA 2.048kHz 85dB @ 12V, 10cm Through Hole PC Pins
DataSheet
Series
SD
Frequency
2.048kHz
Packaging
Bulk
Input Type
Zero-Peak Signal
Technology
Magnetic
Part Status
Obsolete
Termination
PC Pins
Manufacturer
TDK
Mounting Type
Through Hole
Port Location
Top
Voltage Range
6 ~ 16V
Operating Mode
Single Tone
Voltage - Rated
12 V
Current - Supply
100mA
Driver Circuitry
Transducer, Externally Driven
Size / Dimension
0.630" Dia (16.00mm)
Height - Seated (Max)
0.551" (14.00mm)
Operating Temperature
-40°C ~ 85°C
Sound Pressure Level (SPL)
85dB @ 12V, 10cm
| Attribute | Value |
|---|---|
| Series | SD |
| Frequency | 2.048kHz |
| Packaging | Bulk |
| Input Type | Zero-Peak Signal |
| Technology | Magnetic |
| Part Status | Obsolete |
| Termination | PC Pins |
| Manufacturer | TDK |
| Mounting Type | Through Hole |
| Port Location | Top |
| Voltage Range | 6 ~ 16V |
| Operating Mode | Single Tone |
| Voltage - Rated | 12 V |
| Current - Supply | 100mA |
| Driver Circuitry | Transducer, Externally Driven |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Operating Temperature | -40°C ~ 85°C |
| Sound Pressure Level (SPL) | 85dB @ 12V, 10cm |
