TDK PC95ELT25X8.6-Z

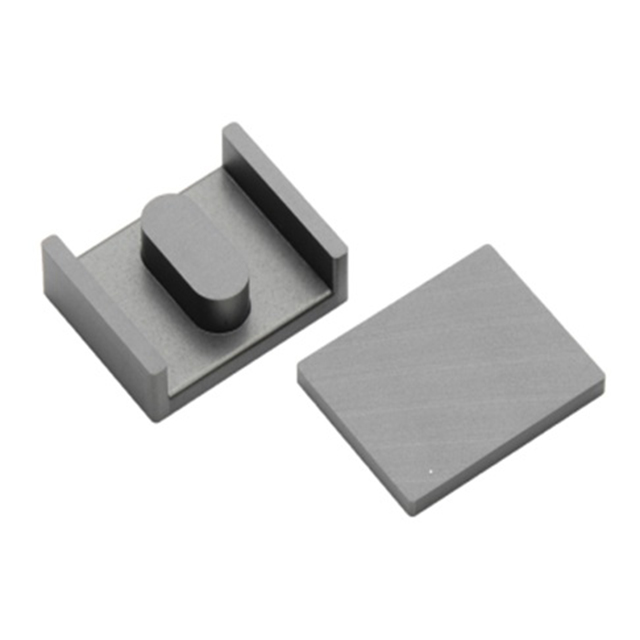

Image shown is a representation only
Manufacturer
Manufacturer No
PC95ELT25X8.6-Z
Packaging
Tray
Description
FERRITE CORE ELH 7.54UH 1SET
Detailed Description
Uncoated PC95 Ferrite Core ELH, PLT Type 0.984" (25.00mm) Length 0.787" (20.00mm) Width Diameter 0.248" (6.30mm) Height
DataSheet
Gap
Ungapped
Width
0.787" (20.00mm)
Finish
Uncoated
Height
0.248" (6.30mm)
Length
0.984" (25.00mm)
Series
Planar
Material
PC95
Core Type
ELH, PLT
Packaging
Tray
Tolerance
±25%
Part Status
Active
Manufacturer
TDK
Inductance Factor (Al)
7.54 µH
Supplier Device Package
ELT 25 x 8.6
Effective Area (Ae) mm²
85.6
Effective Length (le) mm
30.0
Core Factor (ΣI/A) mm⁻¹
0.35
Effective Magnetic Volume (Ve) mm³
2570.0
Minimum Core Cross Section (Amin) mm²
83.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Width | 0.787" (20.00mm) |
| Finish | Uncoated |
| Height | 0.248" (6.30mm) |
| Length | 0.984" (25.00mm) |
| Series | Planar |
| Material | PC95 |
| Core Type | ELH, PLT |
| Packaging | Tray |
| Tolerance | ±25% |
| Part Status | Active |
| Manufacturer | TDK |
| Inductance Factor (Al) | 7.54 µH |
| Supplier Device Package | ELT 25 x 8.6 |
| Effective Area (Ae) mm² | 85.6 |
| Effective Length (le) mm | 30.0 |
| Core Factor (ΣI/A) mm⁻¹ | 0.35 |
| Effective Magnetic Volume (Ve) mm³ | 2570.0 |
| Minimum Core Cross Section (Amin) mm² | 83.0 |
