Step1: Product

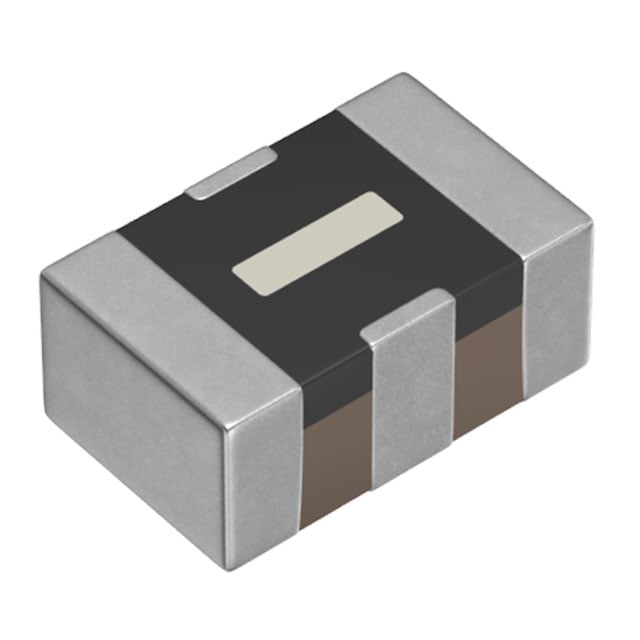

TDK MEM2012S101RT001
Image shown is a representation only
Manufacturer
Manufacturer No
MEM2012S101RT001
Quantity
5455
Availability
In Stock
Package
0805 (2012 Metric), 3 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
FILTER LC(T) 100MHZ SMD
Detailed Description
LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel 250 mA 0805 (2012 Metric), 3 PC Pad
DataSheet
Type
Low Pass
Height
0.037" (0.95mm)
Series
MEM
Current
250 mA
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
LC (T-Type)
Part Status
Active
Applications
Data Lines for Mobile Devices
Filter Order
3rd
Manufacturer
TDK
Mounting Type
Surface Mount
ESD Protection
No
Package / Case
0805 (2012 Metric), 3 PC Pad
Voltage - Rated
10V
Size / Dimension
0.079" L x 0.049" W (2.00mm x 1.25mm)
Attenuation Value
30dB @ 400MHz ~ 2GHz
Number of Channels
1
Operating Temperature
-40°C ~ 85°C
Center / Cutoff Frequency
100MHz (Cutoff)
| Attribute | Value |
|---|---|
| Type | Low Pass |
| Height | 0.037" (0.95mm) |
| Series | MEM |
| Current | 250 mA |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | LC (T-Type) |
| Part Status | Active |
| Applications | Data Lines for Mobile Devices |
| Filter Order | 3rd |
| Manufacturer | TDK |
| Mounting Type | Surface Mount |
| ESD Protection | No |
| Package / Case | 0805 (2012 Metric), 3 PC Pad |
| Voltage - Rated | 10V |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Attenuation Value | 30dB @ 400MHz ~ 2GHz |
| Number of Channels | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Center / Cutoff Frequency | 100MHz (Cutoff) |
