TDK ECO2420SEO-D01V019

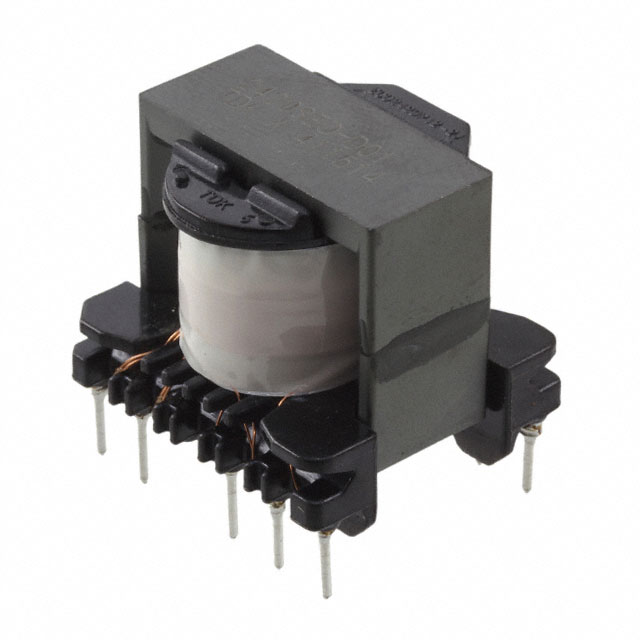

Image shown is a representation only
Manufacturer
Manufacturer No
ECO2420SEO-D01V019
Packaging
Bulk
Description
XFMR FLYBCK AC/DC CONV 4.72MH TH
Detailed Description
Flyback Converters For For AC/DC Converters SMPS Transformer 2000Vrms Isolation Through Hole
DataSheet
Type
For AC/DC Converters
Series
ECO
Footprint
1.122" L x 0.945" W (28.50mm x 24.00mm)
Packaging
Bulk
Part Status
Active
Applications
Flyback Converters
Manufacturer
TDK
Mounting Type
Through Hole
Size / Dimension
1.122" L x 0.945" W (28.50mm x 24.00mm)
Voltage - Primary
200 ~ 300V
Voltage - Auxiliary
5V @ 200mA, 12V @ 800mA, 17V @ 20mA, 17V @ 170mA
Voltage - Isolation
2000Vrms
Height - Seated (Max)
1.043" (26.50mm)
Operating Temperature
-30°C ~ 120°C
Inductance @ Frequency
4.72mH @ 10kHz
| Attribute | Value |
|---|---|
| Type | For AC/DC Converters |
| Series | ECO |
| Footprint | 1.122" L x 0.945" W (28.50mm x 24.00mm) |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Flyback Converters |
| Manufacturer | TDK |
| Mounting Type | Through Hole |
| Size / Dimension | 1.122" L x 0.945" W (28.50mm x 24.00mm) |
| Voltage - Primary | 200 ~ 300V |
| Voltage - Auxiliary | 5V @ 200mA, 12V @ 800mA, 17V @ 20mA, 17V @ 170mA |
| Voltage - Isolation | 2000Vrms |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Operating Temperature | -30°C ~ 120°C |
| Inductance @ Frequency | 4.72mH @ 10kHz |
