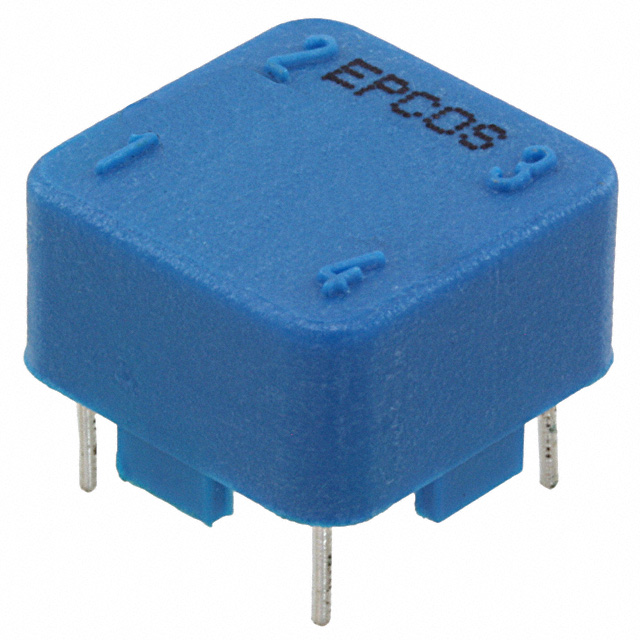

TDK B82720A2202N040
Image shown is a representation only
Manufacturer
Manufacturer No
B82720A2202N040
Quantity
47
Availability
In Stock
Package
Horizontal, 4 PC Pin
Packaging
Tray
Description
CMC 1.1MH 2A 2LN TH
Detailed Description
1.1 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 65mOhm (Typ)
DataSheet
Series
B82720
Packaging
Tray
Filter Type
Power Line
Part Status
Active
Height (Max)
0.380" (9.65mm)
Manufacturer
TDK
Mounting Type
Through Hole
Package / Case
Horizontal, 4 PC Pin
Approval Agency
ENEC, UR, VDE
Number of Lines
2
Size / Dimension
0.559" L x 0.559" W (14.20mm x 14.20mm)
Voltage Rating - AC
250V
Current Rating (Max)
2A
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
1.1 mH @ 10 kHz
DC Resistance (DCR) (Max)
65mOhm (Typ)
| Attribute | Value |
|---|---|
| Series | B82720 |
| Packaging | Tray |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 0.380" (9.65mm) |
| Manufacturer | TDK |
| Mounting Type | Through Hole |
| Package / Case | Horizontal, 4 PC Pin |
| Approval Agency | ENEC, UR, VDE |
| Number of Lines | 2 |
| Size / Dimension | 0.559" L x 0.559" W (14.20mm x 14.20mm) |
| Voltage Rating - AC | 250V |
| Current Rating (Max) | 2A |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 1.1 mH @ 10 kHz |
| DC Resistance (DCR) (Max) | 65mOhm (Typ) |
