Step1: Product
TDK B78477P1003A14

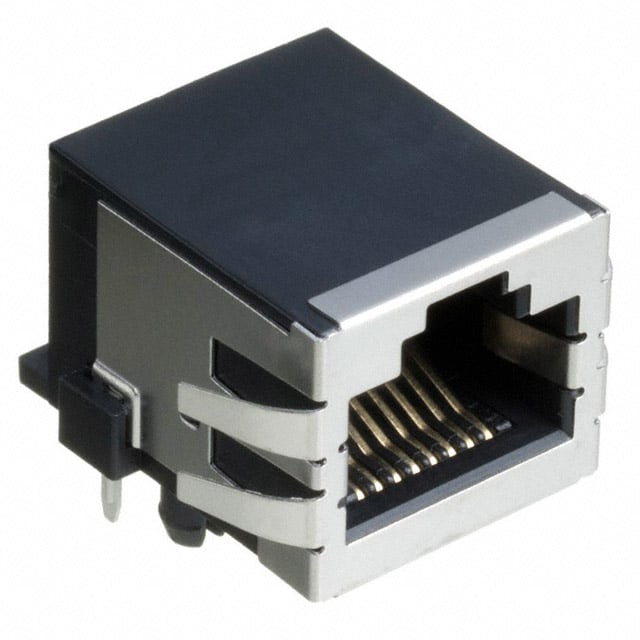

Image shown is a representation only
Manufacturer
Manufacturer No
B78477P1003A14
Packaging
Tape & Reel (TR)
Description
CONN JACK 1PORT PCB
Detailed Description
1 Port RJ45 Through Hole 10/100 Base-T, AutoMDIX
Datasheet
Series
B78477P
Features
Board Guide
LED Color
Does Not Contain LED
Packaging
Tape & Reel (TR)
Shielding
Shielded, EMI Finger
Orientation
90° Angle (Right)
Termination
Solder
Applications
10/100 Base-T, AutoMDIX
Manufacturer
TDK
Mounting Type
Through Hole
Tab Direction
Down
Connector Type
RJ45
Contact Finish
Gold
Number of Rows
1
Number of Ports
1
Shield Material
Copper Alloy
Contact Material
Phosphor Bronze
Housing Material
Thermoplastic
Height Above Board
0.541" (13.75mm)
Operating Temperature
0°C ~ 70°C
Contact Finish Thickness
15.0µin (0.38µm)
Number of Cores per Jack
4
| Attribute | Value |
|---|---|
| Series | B78477P |
| Features | Board Guide |
| LED Color | Does Not Contain LED |
| Packaging | Tape & Reel (TR) |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100 Base-T, AutoMDIX |
| Manufacturer | TDK |
| Mounting Type | Through Hole |
| Tab Direction | Down |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Number of Rows | 1 |
| Number of Ports | 1 |
| Shield Material | Copper Alloy |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| Height Above Board | 0.541" (13.75mm) |
| Operating Temperature | 0°C ~ 70°C |
| Contact Finish Thickness | 15.0µin (0.38µm) |
| Number of Cores per Jack | 4 |
