Step1: Product
TDK B66387G0000X188

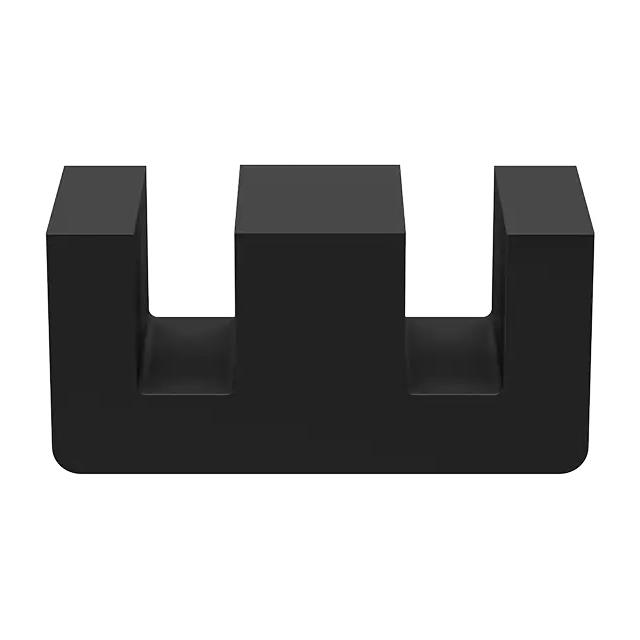

Image shown is a representation only
Manufacturer
Manufacturer No
B66387G0000X188
Packaging
Tray
Description
E65/32/27-N88
Detailed Description
Uncoated N88 Ferrite Core E Type 2.559" (65.00mm) Length 1.079" (27.40mm) Width Diameter 1.291" (32.80mm) Height
Datasheet
Gap
Ungapped
Width
1.079" (27.40mm)
Finish
Uncoated
Height
1.291" (32.80mm)
Length
2.559" (65.00mm)
Series
E65/32/27- Large Size
Material
N88
Core Type
E
Packaging
Tray
Tolerance
-20%, +30%
Manufacturer
TDK
Inductance Factor (Al)
7 µH
Supplier Device Package
E 65 x 32 x 27
Effective Area (Ae) mm²
535.0
Effective Length (le) mm
147.0
Initial Permeability (µi)
1600
Core Factor (ΣI/A) mm⁻¹
0.27
Effective Magnetic Volume (Ve) mm³
78650.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Width | 1.079" (27.40mm) |
| Finish | Uncoated |
| Height | 1.291" (32.80mm) |
| Length | 2.559" (65.00mm) |
| Series | E65/32/27- Large Size |
| Material | N88 |
| Core Type | E |
| Packaging | Tray |
| Tolerance | -20%, +30% |
| Manufacturer | TDK |
| Inductance Factor (Al) | 7 µH |
| Supplier Device Package | E 65 x 32 x 27 |
| Effective Area (Ae) mm² | 535.0 |
| Effective Length (le) mm | 147.0 |
| Initial Permeability (µi) | 1600 |
| Core Factor (ΣI/A) mm⁻¹ | 0.27 |
| Effective Magnetic Volume (Ve) mm³ | 78650.0 |
