TDK B66375Q0080K197

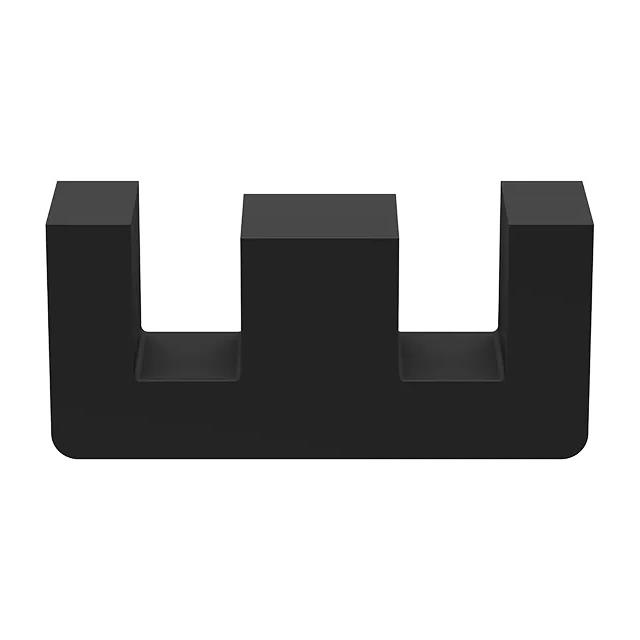

Image shown is a representation only
Manufacturer
Manufacturer No
B66375Q0080K197
Packaging
Tray
Description
E80/38/20-N97-DG80
Detailed Description
Uncoated N97 Ferrite Core E Type 3.150" (80.00mm) Length 0.795" (20.20mm) Width Diameter 1.516" (38.50mm) Height
DataSheet
Gap
Gapped
Width
0.795" (20.20mm)
Finish
Uncoated
Height
1.516" (38.50mm)
Length
3.150" (80.00mm)
Series
B66375
Material
N97
Core Type
E
Packaging
Tray
Tolerance
±10%
Part Status
Active
Manufacturer
TDK
Inductance Factor (Al)
80 nH
Supplier Device Package
E 80 x 38 x 20
Effective Area (Ae) mm²
390.0
Effective Length (le) mm
184.0
Initial Permeability (µi)
2300
Core Factor (ΣI/A) mm⁻¹
0.47
Effective Magnetic Volume (Ve) mm³
71800.0
Minimum Core Cross Section (Amin) mm²
388.0
| Attribute | Value |
|---|---|
| Gap | Gapped |
| Width | 0.795" (20.20mm) |
| Finish | Uncoated |
| Height | 1.516" (38.50mm) |
| Length | 3.150" (80.00mm) |
| Series | B66375 |
| Material | N97 |
| Core Type | E |
| Packaging | Tray |
| Tolerance | ±10% |
| Part Status | Active |
| Manufacturer | TDK |
| Inductance Factor (Al) | 80 nH |
| Supplier Device Package | E 80 x 38 x 20 |
| Effective Area (Ae) mm² | 390.0 |
| Effective Length (le) mm | 184.0 |
| Initial Permeability (µi) | 2300 |
| Core Factor (ΣI/A) mm⁻¹ | 0.47 |
| Effective Magnetic Volume (Ve) mm³ | 71800.0 |
| Minimum Core Cross Section (Amin) mm² | 388.0 |
