TDK B66233G0000X197

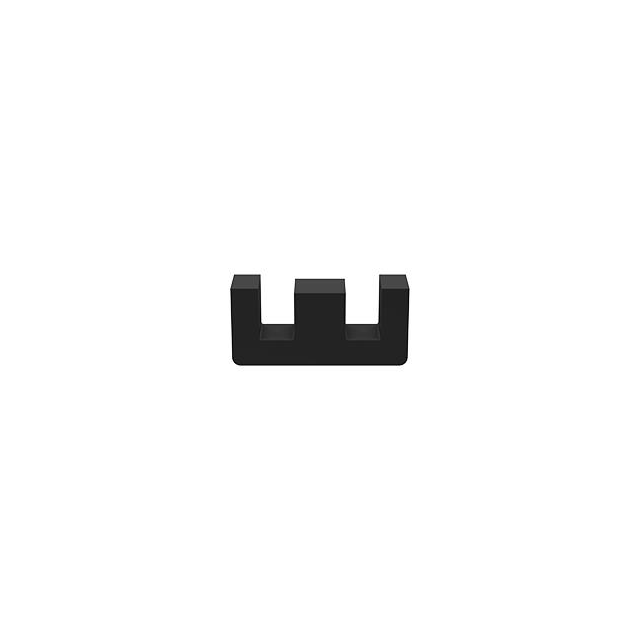

Image shown is a representation only
Manufacturer
Manufacturer No
B66233G0000X197
Packaging
Box
Description
FERRITE CORE E 3UH N97
Detailed Description
Uncoated N97 Ferrite Core E Type 1.260" (32.00mm) Length 0.433" (11.00mm) Width Diameter 0.646" (16.40mm) Height
DataSheet
Gap
Ungapped
Width
0.433" (11.00mm)
Finish
Uncoated
Height
0.646" (16.40mm)
Length
1.260" (32.00mm)
Series
E32/16/11
Material
N97
Core Type
E
Packaging
Box
Tolerance
-20%, +30%
Part Status
Active
Manufacturer
TDK
Inductance Factor (Al)
3 µH
Supplier Device Package
E 32 x 16 x 11
Effective Area (Ae) mm²
97.0
Effective Length (le) mm
74.0
Initial Permeability (µi)
2300
Core Factor (ΣI/A) mm⁻¹
0.76
Effective Permeability (µe)
1820.0
Effective Magnetic Volume (Ve) mm³
7187.0
Minimum Core Cross Section (Amin) mm²
95.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Width | 0.433" (11.00mm) |
| Finish | Uncoated |
| Height | 0.646" (16.40mm) |
| Length | 1.260" (32.00mm) |
| Series | E32/16/11 |
| Material | N97 |
| Core Type | E |
| Packaging | Box |
| Tolerance | -20%, +30% |
| Part Status | Active |
| Manufacturer | TDK |
| Inductance Factor (Al) | 3 µH |
| Supplier Device Package | E 32 x 16 x 11 |
| Effective Area (Ae) mm² | 97.0 |
| Effective Length (le) mm | 74.0 |
| Initial Permeability (µi) | 2300 |
| Core Factor (ΣI/A) mm⁻¹ | 0.76 |
| Effective Permeability (µe) | 1820.0 |
| Effective Magnetic Volume (Ve) mm³ | 7187.0 |
| Minimum Core Cross Section (Amin) mm² | 95.0 |
