Step1: Product

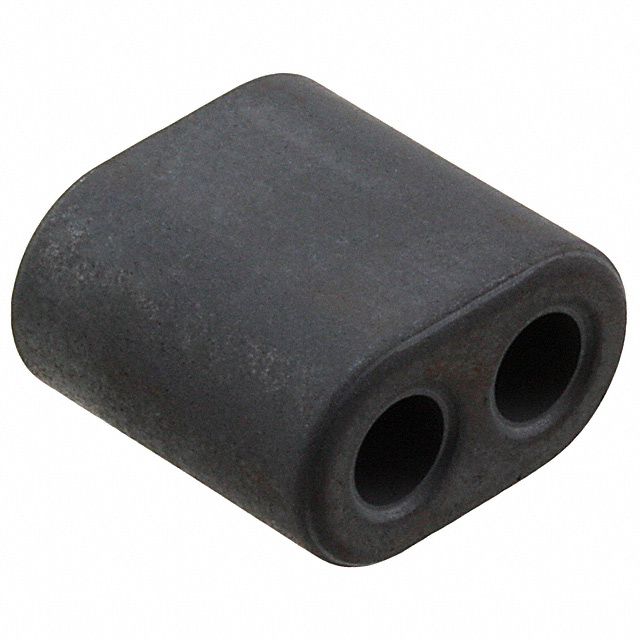

TDK B62152A0001X001
Image shown is a representation only
Manufacturer
Manufacturer No
B62152A0001X001
Date Code
0809
Quantity
20
Availability
In Stock
Packaging
Bulk
Description
FERRITE CORE 2 HOLE 330NH K1
Detailed Description
Uncoated K1 Ferrite Core Multi-Hole (2) Type 0.571" (14.50mm) Length 0.335" (8.50mm) Width Diameter 0.571" (14.50mm) Height
Datasheet
Gap
Ungapped
Width
0.335" (8.50mm)
Finish
Uncoated
Height
0.571" (14.50mm)
Length
0.571" (14.50mm)
Series
MHB2-14.5/8.5/14.5
Material
K1
Core Type
Multi-Hole (2)
Packaging
Bulk
Tolerance
±30%
Manufacturer
TDK
Inductance Factor (Al)
330 nH
Effective Area (Ae) mm²
49.7
Effective Length (le) mm
15.3
Initial Permeability (µi)
80
Core Factor (ΣI/A) mm⁻¹
0.31
Effective Magnetic Volume (Ve) mm³
760.0
| Attribute | Value |
|---|---|
| Gap | Ungapped |
| Width | 0.335" (8.50mm) |
| Finish | Uncoated |
| Height | 0.571" (14.50mm) |
| Length | 0.571" (14.50mm) |
| Series | MHB2-14.5/8.5/14.5 |
| Material | K1 |
| Core Type | Multi-Hole (2) |
| Packaging | Bulk |
| Tolerance | ±30% |
| Manufacturer | TDK |
| Inductance Factor (Al) | 330 nH |
| Effective Area (Ae) mm² | 49.7 |
| Effective Length (le) mm | 15.3 |
| Initial Permeability (µi) | 80 |
| Core Factor (ΣI/A) mm⁻¹ | 0.31 |
| Effective Magnetic Volume (Ve) mm³ | 760.0 |
