Step1: Product
TDK B32022A3223M189

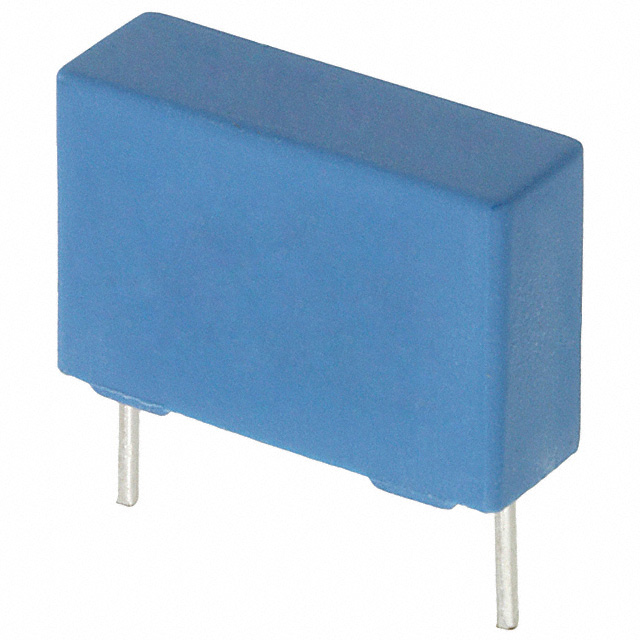

Image shown is a representation only
Manufacturer
Manufacturer No
B32022A3223M189
Quantity
1075
Availability
In Stock
Package
Radial
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CAP FILM 0.022UF 20% 1.5KVDC RAD
Detailed Description
0.022 µF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
DataSheet
Mfr
TDK
Series
B3202* - Y2 Standard
Ratings
Y2
Packaging
Tape & Reel (TR); Cut Tape (CT)
Tolerance
±20%
Capacitance
0.022 µF
Part Status
Active
Termination
PC Pins
Applications
EMI, RFI Suppression
Lead Spacing
0.591" (15.00mm)
Mounting Type
Through Hole
Package / Case
Radial
Size / Dimension
0.709" L x 0.236" W (18.00mm x 6.00mm)
Dielectric Material
Polypropylene (PP), Metallized
Voltage Rating - AC
300V
Voltage Rating - DC
1500V (1.5kV)
Height - Seated (Max)
0.472" (12.00mm)
Operating Temperature
-40°C ~ 110°C
| Attribute | Value |
|---|---|
| Mfr | TDK |
| Series | B3202* - Y2 Standard |
| Ratings | Y2 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Tolerance | ±20% |
| Capacitance | 0.022 µF |
| Part Status | Active |
| Termination | PC Pins |
| Applications | EMI, RFI Suppression |
| Lead Spacing | 0.591" (15.00mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.236" W (18.00mm x 6.00mm) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Operating Temperature | -40°C ~ 110°C |
