Step1: Product
TDK ANT167250ST-1210A1

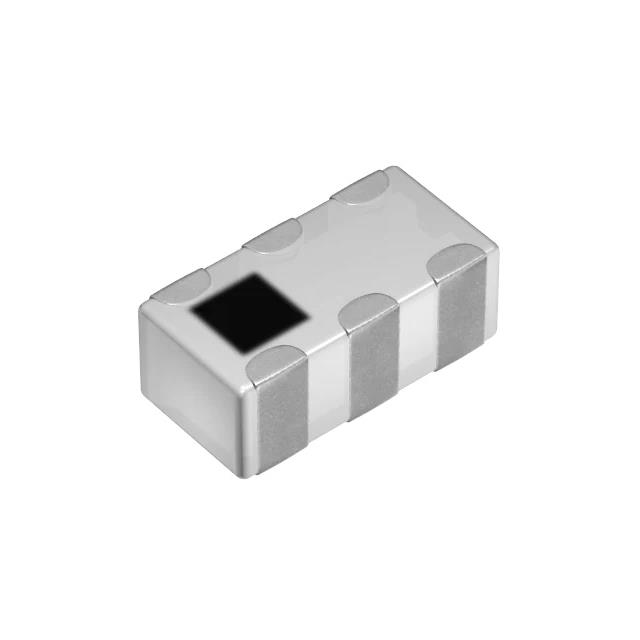

Image shown is a representation only
Manufacturer
Manufacturer No
ANT167250ST-1210A1
Quantity
3,676
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
MULTILAYER CHIP ANTENNA FOR UWB
Detailed Description
RF ANTENNA General Purpose Chip Solder Surface Mount
Datasheet
Gain
8.1dBi
VSWR
1.58
Series
ANT
Packaging
Tape & Reel (TR); Cut Tape (CT)
Power - Max
1 W
Termination
Solder
Antenna Type
Chip
Applications
General Purpose
Height (Max)
0.018" (0.45mm)
Manufacturer
TDK
Mounting Type
Surface Mount
Frequency Group
SHF (f > 4GHz)
Frequency Range
6.2GHz ~ 8.3GHz
Number of Bands
1
RF Family/Standard
General ISM
Frequency (Center/Band)
7.25GHz
| Attribute | Value |
|---|---|
| Gain | 8.1dBi |
| VSWR | 1.58 |
| Series | ANT |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Power - Max | 1 W |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | General Purpose |
| Height (Max) | 0.018" (0.45mm) |
| Manufacturer | TDK |
| Mounting Type | Surface Mount |
| Frequency Group | SHF (f > 4GHz) |
| Frequency Range | 6.2GHz ~ 8.3GHz |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Frequency (Center/Band) | 7.25GHz |
