TDK ACT1210G-800-2P-TL10

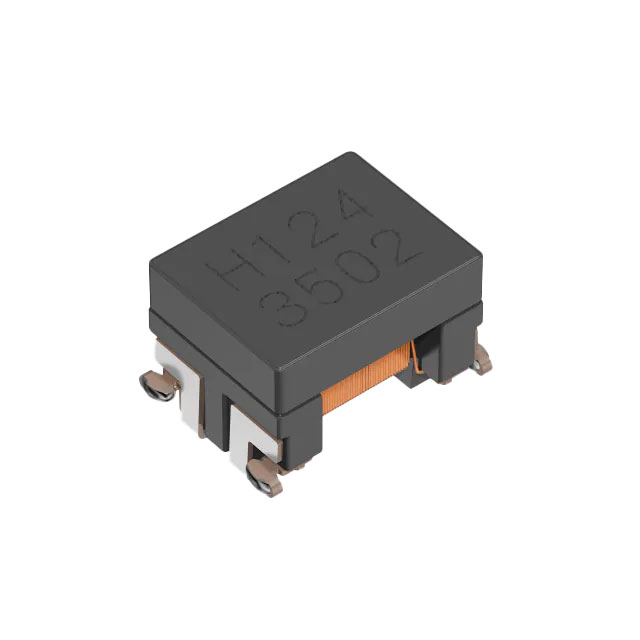

Image shown is a representation only
Manufacturer
Manufacturer No
ACT1210G-800-2P-TL10
Quantity
2225
Availability
In Stock
Package
Horizontal, 4 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CMC 80UH 70MA 2LN 3.8KOHM SMD
Detailed Description
80 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 3.8 kOhms @ 10 MHz 70mA DCR 2.6Ohm
DataSheet
Series
ACT
Ratings
AEC-Q200
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Filter Type
Signal Line
Part Status
Active
Height (Max)
0.098" (2.50mm)
Manufacturer
TDK
Mounting Type
Surface Mount
Package / Case
Horizontal, 4 PC Pad
Number of Lines
2
Size / Dimension
0.126" L x 0.098" W (3.20mm x 2.50mm)
Voltage Rating - DC
80V
Current Rating (Max)
70mA
Impedance @ Frequency
3.8 kOhms @ 10 MHz
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
80 µH @ 100 kHz
DC Resistance (DCR) (Max)
2.6Ohm
| Attribute | Value |
|---|---|
| Series | ACT |
| Ratings | AEC-Q200 |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Filter Type | Signal Line |
| Part Status | Active |
| Height (Max) | 0.098" (2.50mm) |
| Manufacturer | TDK |
| Mounting Type | Surface Mount |
| Package / Case | Horizontal, 4 PC Pad |
| Number of Lines | 2 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 70mA |
| Impedance @ Frequency | 3.8 kOhms @ 10 MHz |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 80 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 2.6Ohm |
