Step1: Product

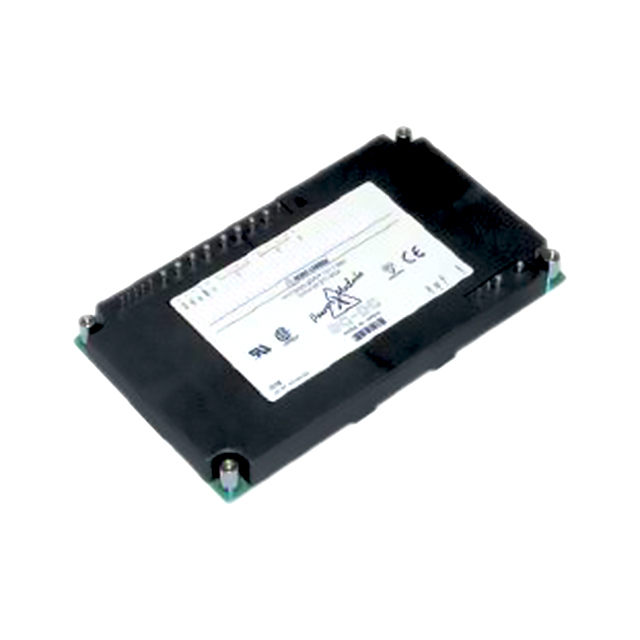

TDK-Lambda PH100F24-12
Image shown is a representation only
Manufacturer
Manufacturer No
PH100F24-12
Package
Module
Packaging
Bulk
Description
DC DC CONVERTER 12V 100W
Detailed Description
Isolated Module DC DC Converter 1 Output 12V 8.4A 18V - 36V Input
Datasheet
Mfr
TDK-Lambda
Type
Isolated Module
Series
PH-F (100W)
Features
Remote On/Off, OCP, OTP, OVP
Packaging
Bulk
Applications
ITE (Commercial)
Mounting Type
Through Hole
Power (Watts)
100 W
Package / Case
Module
Control Features
Enable, Active Low
Size / Dimension
3.39" L x 3.27" W x 0.50" H (86.0mm x 83.0mm x 12.7mm)
Number of Outputs
1
Voltage - Output 1
12V
Voltage - Isolation
3 kV
Operating Temperature
-20°C ~ 85°C
Voltage - Input (Max)
36V
Voltage - Input (Min)
18V
Current - Output (Max)
8.4A
| Attribute | Value |
|---|---|
| Mfr | TDK-Lambda |
| Type | Isolated Module |
| Series | PH-F (100W) |
| Features | Remote On/Off, OCP, OTP, OVP |
| Packaging | Bulk |
| Applications | ITE (Commercial) |
| Mounting Type | Through Hole |
| Power (Watts) | 100 W |
| Package / Case | Module |
| Control Features | Enable, Active Low |
| Size / Dimension | 3.39" L x 3.27" W x 0.50" H (86.0mm x 83.0mm x 12.7mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Isolation | 3 kV |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 18V |
| Current - Output (Max) | 8.4A |
