Step1: Product

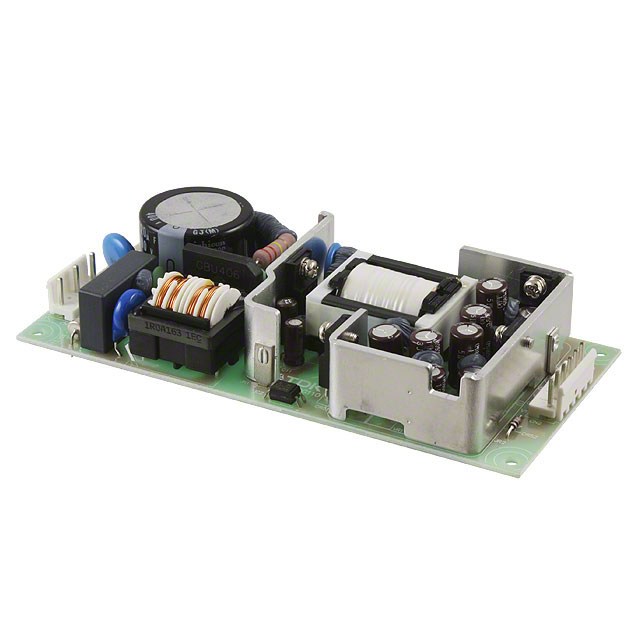

TDK-Lambda MTW30-51212-V
Image shown is a representation only
Manufacturer
Manufacturer No
MTW30-51212-V
Packaging
Bulk
Description
AC/DC CONVERTER 5V 12V -12V 30W
Detailed Description
Open Frame AC DC Converters 3 Output 5V 12V -12V 85 ~ 265 VAC Input
DataSheet
Mfr
TDK-Lambda
Type
Open Frame
Series
MTW (30W)
Features
Adjustable Output, PFC, Universal Input
Packaging
Bulk
Efficiency
76%
Part Status
Obsolete
Applications
ITE (Commercial)
Mounting Type
Chassis Mount
Power (Watts)
30W
Voltage - Input
85 ~ 265 VAC
Size / Dimension
5.51" L x 2.56" W x 1.02" H (140.0mm x 65.0mm x 26.0mm)
Number of Outputs
3
Current - Output 1
3 A
Current - Output 2
1.2 A
Current - Output 3
300 mA
Voltage - Output 1
5V
Voltage - Output 2
12V
Voltage - Output 3
-12V
Base Product Number
MTW30
Voltage - Isolation
3 kV
Minimum Load Required
Yes
Operating Temperature
-10°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | TDK-Lambda |
| Type | Open Frame |
| Series | MTW (30W) |
| Features | Adjustable Output, PFC, Universal Input |
| Packaging | Bulk |
| Efficiency | 76% |
| Part Status | Obsolete |
| Applications | ITE (Commercial) |
| Mounting Type | Chassis Mount |
| Power (Watts) | 30W |
| Voltage - Input | 85 ~ 265 VAC |
| Size / Dimension | 5.51" L x 2.56" W x 1.02" H (140.0mm x 65.0mm x 26.0mm) |
| Number of Outputs | 3 |
| Current - Output 1 | 3 A |
| Current - Output 2 | 1.2 A |
| Current - Output 3 | 300 mA |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Base Product Number | MTW30 |
| Voltage - Isolation | 3 kV |
| Minimum Load Required | Yes |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
