Step1: Product
TCLAD INC CLM3820P3060F

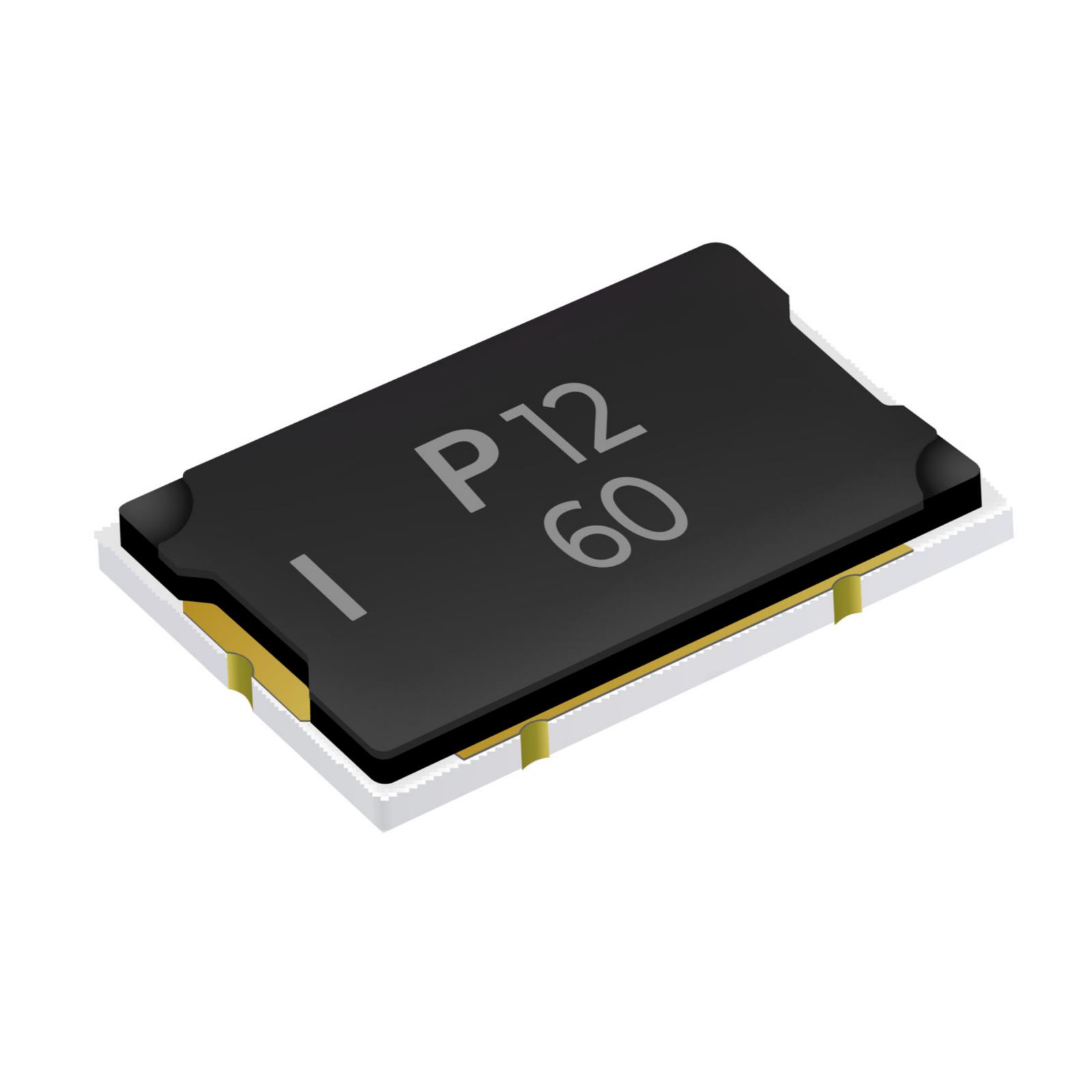

Image shown is a representation only
Manufacturer
Manufacturer No
CLM3820P3060F
Package
3820 (9550 Metric)
Packaging
Tape & Reel (TR)
Description
FUSE BATTERY PROTECTOR 80V 60A
Detailed Description
60A 80 VDC Fuse Board Mount Surface Mount
Series
CLM3820 60F
Features
22.3 ~ 31.5V Triggerable
Fuse Type
Board Mount
Packaging
Tape & Reel (TR)
Part Status
Active
Applications
Battery Protection
Manufacturer
TCLAD INC
Mounting Type
Surface Mount
Response Time
Fast Blow
Package / Case
3820 (9550 Metric)
Approval Agency
cURus, TUV
Size / Dimension
0.374" L x 0.197" W x 0.079" H (9.50mm x 5.00mm x 2.00mm)
Voltage Rating - DC
80 VDC
Current Rating (Amps)
60A
Operating Temperature
-10°C ~ 65°C
Breaking Capacity @ Rated Voltage
160A
| Attribute | Value |
|---|---|
| Series | CLM3820 60F |
| Features | 22.3 ~ 31.5V Triggerable |
| Fuse Type | Board Mount |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Applications | Battery Protection |
| Manufacturer | TCLAD INC |
| Mounting Type | Surface Mount |
| Response Time | Fast Blow |
| Package / Case | 3820 (9550 Metric) |
| Approval Agency | cURus, TUV |
| Size / Dimension | 0.374" L x 0.197" W x 0.079" H (9.50mm x 5.00mm x 2.00mm) |
| Voltage Rating - DC | 80 VDC |
| Current Rating (Amps) | 60A |
| Operating Temperature | -10°C ~ 65°C |
| Breaking Capacity @ Rated Voltage | 160A |
